| Main Specifications |

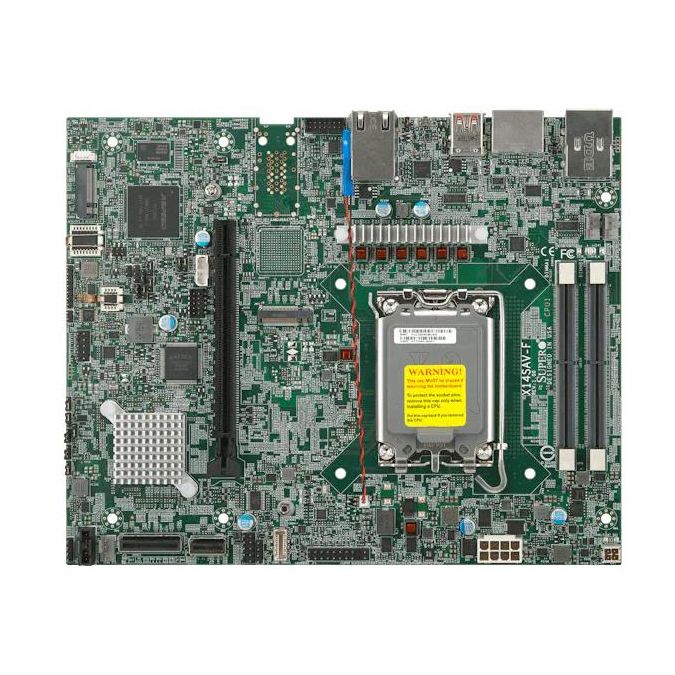

| Device Type | Motherboard |
| Form Factor | Flex ATX |
| Dimensions (WxDxH) | 9' x 7.25' (22.86cm x 18.42cm) |
| Processor |
| Compatible Processors | Intel Core Ultra 9/7/5 Series 2 Processors |
| Compatible Socket | Single Socket V1 (LGA-1851) supported, CPU TDP supports Up to 125W TDP |
| Cache/Cores | Up to 24 core |
| System Memory |
| Memory Capacity | 2 DIMM slots, Up to 96GB Unbuffered ECC/non-ECC SODIMM, DDR5-6400MT/s, CSODIMM (clocked SODIMM) support up to 6400MT/s (with Core Ultra 9/7) |
| Memory Type | 5600/4800/4400/4000 MT/s ECC/non-ECC DDR5 SODIMM Unbuffered |
| DIMM Sizes | 8GB, 16GB, 24GB, 32GB, 48GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Network Controllers | Dual LAN with Intel I226LM Ethernet Controller |
| Input / Output |
| LAN | 1 RJ45 GbE LAN port |
| Serial Port / Headers | 1 COM |
| Others | 2 MCIO port(s) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCIe 5.0 x16, 1 PCIe 4.0 x8 MCIO connector |
| M.2 | Key: M-key |
| Form Factor: 2280 |
| M.2 Interface: 1 PCIe 5.0 |
| System BIOS |
| BIOS Type | AMI 32MB UEFI |
| BIOS Features | UEFI 2.9 |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | VBAT, Memory temperature, CPU temperature, Chipset voltage, 3 -fan status, +5V, +3.3V, +12V, +1.8V, BMC/IPMI Heartbeat LED, UID, 3 fans with tachometer monitoring |
| LED | Power LED |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support |
| Other Features | RoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source |
| FAN | 3x 4-pin fan headers (up to 3 fans) |
| Environmental |
| Operating Environment | Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Operating Relative Humidity Range: 10% - 85% (non-condensing) |
| Operating Temperature Range: 0°C - 60°C (32°F - 140°F) |
| Non-Operating Temperature Range: -40°C - 85°C (-40°F - 85°F) |
| Parts List |
| I/O Cables | 1x CBL-MCIO-1250QT4Q-85, 1x CBL-PWEX-1066 |
| I/O Shield | 1x MCP-260-00197-0N |
