More Information
| Applicability |
Enterprise server / data center platform |
| Manufacturer |
Supermicro |
| SKU |

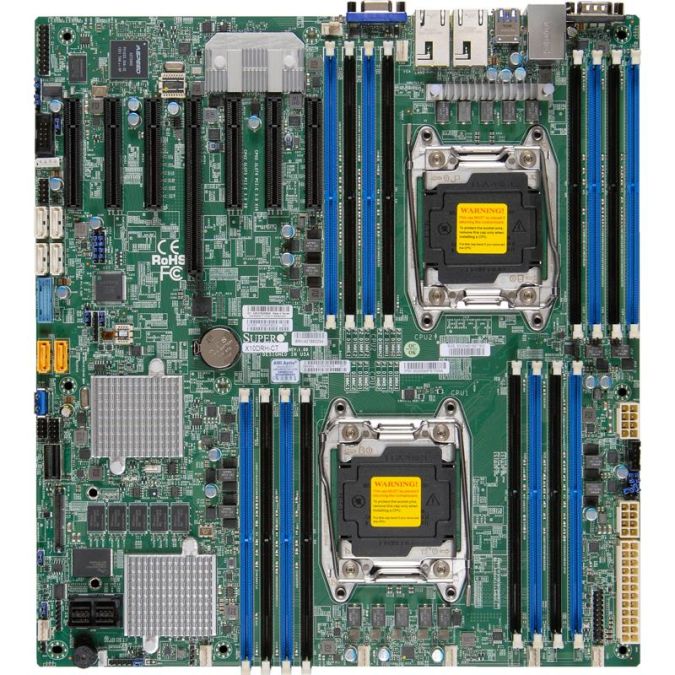

X10DRH-CT |
| Product Type |
Server Motherboard |
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family, UPI up to 9.6GT/s
2. Intel® C612 chipset
3. Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz, 16 DIMM slots
4. 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8 slots
5. Intel® X540 Dual port 10GBase-T
6. 10 SATA3 (6Gbps) ports w/ Intel® C612 controller, RAID 0, 1, 5, 10
7. 8 SAS3 (12Gbps) ports w/ Broadcom® 3108 controller (2GB cache), RAID 0, 1, 5, 6, 10, 50, 60
8. Integrated IPMI 2.0 and KVM with Dedicated LAN
9. 5 USB 3.0 and 4 USB 2.0 ports
|
