More Information
| Applicability |
Enterprise server / data center platform |
| Manufacturer |
Supermicro |
| SKU |

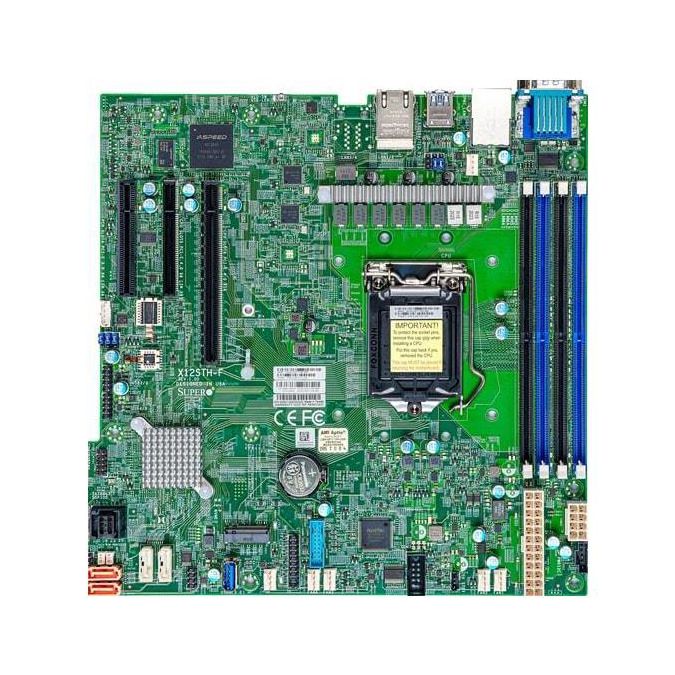

X12STH-F |
| Product Type |
Embedded Server Motherboard |
1. 2 SuperDOM with built-in power
2. I/O: 1 VGA, 2 COM, 1 TPM header
3. Intel® Xeon® E-2300 Processor, 10th Generation Intel® Pentium® Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP
4. Intel® C256
5. Up to 128GB ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
6. 1 PCIe 4.0 x16 1 PCIe 4.0 x4 (in x8 slot) 1 PCIe 3.0 x4 (in x8 slot) M.2 Interface: PCIe 3.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-Key
7. Dual LAN with Intel® Ethernet Controller I210
8. Intel® C256 controller for 8 SATA3 (6 Gbps) ports, RAID 0,1,5,10
9. 5x USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 6x USB 2.0 (2 rear, 4 via headers)
10. Gen12 iGPU support
|
