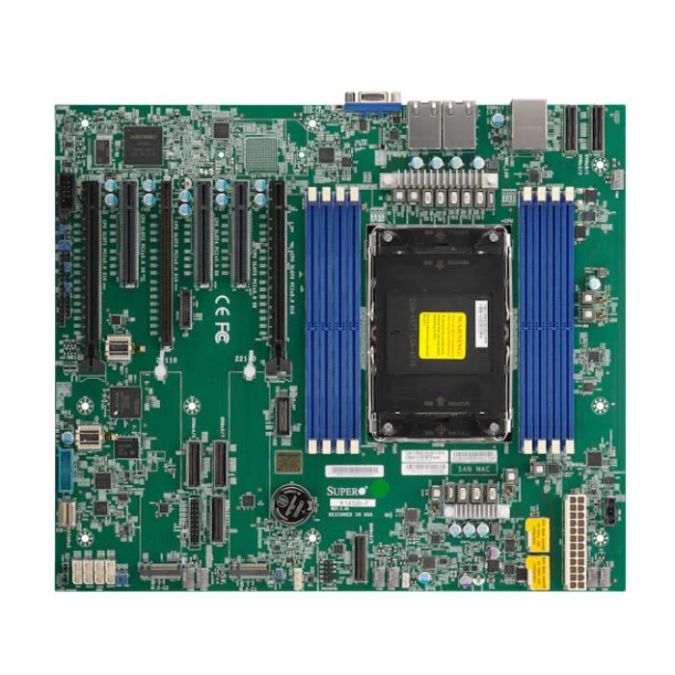

Supermicro X14SBI-F Motherboard ATX Single Socket E2 (LGA-4710) Intel Xeon 6700/6500 Series Processors With P-Cores Or 6700 Series Processors With E-Cores
| Applicability | AI / ML — server platform / infrastructure |
|---|---|
| Manufacturer | Supermicro |
| SKU | X14SBI-F |
| Product Type | Embedded Server Motherboard |
Key Features
Intel Xeon 6700/6500 series processors with P-cores or 6700 series processors with E-cores, Single Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP
Up to 2TB ECC RDIMM DDR5-6400MT/s in 8 DIMM slots
6 PCIe 5.0 x8 via MCIO connectors
3 PCIe 5.0 x16, 3 PCIe 5.0 x8
M.2 Interface: 2 PCIe 5.0 x2
M.2 Form Factor: 22110
M.2 Key: M-Key
Dual LAN with 1GbE with Intel I210
Onboard TPM2.0
4 USB 3.2 Gen1 (2 rear, 2 via header), 4 SATA3 (via SlimSAS x4)
