| Main Specifications |

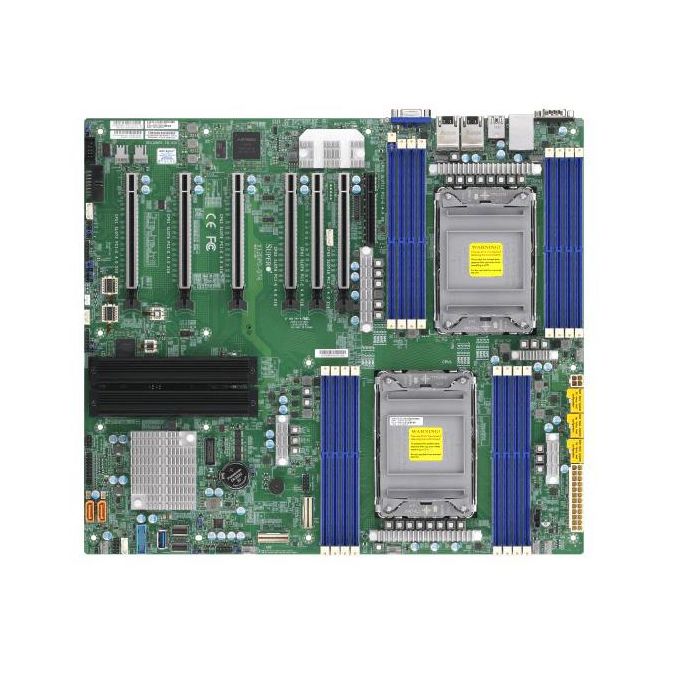

| Device Type | Motherboard |
| Form Factor | Proprietary |
| Dimensions (WxDxH) | 15.12' x 38.43' (13.2cm x 33.53cm) |
| Processor |
| Compatible Processors | 3rd Gen Intel Xeon Scalable processors |
| Compatible Socket | Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s |
| Cache/Core | Up to 40 cores |
| System Memory |
| Memory Capacity | 16 DIMM slots, Up to 6TB Intel Optane Persistent Memory 200 Series, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 6TB Intel Optane DC Persistent Memory in memory mode |
| Memory Type | 3200/2933/2666MHz ECC 3DS , DDR4 LRDIMM, RDIMM |
| DIMM Sizes | 16GB, 32GB, 64GB, 128GB, 256GB, LRDIMM: 128GB, 256GB, RDIMM: 64GB, 128GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel C621A |
| SATA RAID | Intel C621A controller for 10 SATA3 (6 Gbps) ports, RAID 0,1,5,10 |
| IPMI | ASPEED AST2600 BMC |
| Audio | 7.1 HD Audio Header |
| Graphics | ASPEED AST2600 BMC |
| Network Controllers | Dual LAN with Intel X550 10GBase-T Ethernet Controller |
| SATA | 10 SATA3 (6Gbps) port(s) |
| TPM | 1 TPM Header |
| Input / Output |
| USB(s) | 6 USB 3.2 Gen1 port(s) (4 rear, 1 type A, 1 via header), 6 USB 3.1 Gen1 port(s) (1 via header, 1 type A, 3 rear type A, 1 rear type C), 2 USB 2.0 port(s) (2 via header) |
| Video Output | 1 VGA D-Sub Connector port |
| Serial Ports | 2 COM Port(s) (1 header, 1 rear) |
| DOM | 2 SuperDOM (Disk on Module) port with build power |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCI-E 4.0 x8, 6 PCI-E 4.0 x16 |
| M.2 | Key: M-key |
| Form Factor: 2242/2260/2280/22110 |
| M.2 Interface: 2 PCI-E 4.0 x4, RAID 0 & 1 |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | Plug and Play (PnP), ACPI 1.0 / 2.0 / 3.0 / 4.0, USB Keyboard support, SMBIOS 2.7.1, UEFI 2.3.1 |
| Management |
| Software | SuperDoctor 5, NMI, SUM, KVM with dedicated LAN, SPM, Intel Node Manager, SSM, IPMI2.0, Watchdog |
| Power Configurations | ACPI Power Management |
| FAN | 10x 4-pin fan headers (up to 10 fans), Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors |
| PC Health Monitoring |
| Voltage | VBAT, Supports system management utility, HT, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V, 5+1 Phase-switching voltage regulator, 10 -fan status |
| LED | UID/Remote UID, Suspend static indicator LED, CPU / System Overheat LED |
| Other Features | RoHS, Node Manager Support, CPU thermal trip support for processor protection, Chassis intrusion detection |
| Environmental |
| Operating Environment | Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Operating Temperature Range: 10°C - 35°C (50°F - 95°F) |
| Miscellaneous |
| Included Accessories | 2x SKT-1205L-P4IC-FXC |
| Compatiable Chassis | 4U: SC747BTQ-R2K04B, SC747BTS-R2K20BP |
| Compatible Servers | SYS-740GP-TNRT |
| Parts List |
| I/O Shield | 1x MCP-260-00150-0N |
| I/O Cables | 2x CBL-0044L |
