| System Memory |
| Memory Capacity | 8 DIMM slots |
| 8-channel memory bus |
| Supports up to 2TB Registered ECC DDR4 3200-MHz SDRAM |
| On-Board Devices |
| Chipset | AMD WRX80 |
| Network Controllers | 10G LAN: Single LAN via Marvel AQC113C 10G Ethernet Controller |
| 1GbE LAN: Single LAN with Intel® i210AT Enternet Controller (shared with IPMI) |
| SATA | SATA3 (6Gbps), RAID 0, 1, 5, 10 |
| Audio | 7.1 channel HD Audio by Realtek LC4050H + ALC1220 |
| Input / Output |
| Audio | 7.1 HD Audio with optical S/PDIF |
| SATA | 4 SATA3 (6Gbps) ports |
| LAN | 1 RJ45 10GBase-T Ethernet LAN port |
| 1 RJ45 GbE Ethernet LAN port (shared with IPMI) |
| USB | 1 USB 3.2 Gen2x2 port (Type C, 20Gbps) |
| 5 USB 3.2 Gen2 ports (4 Type A, 1 front Intel Type C header, 10Gbps) |
| 5 USB 3.2 Gen1 ports (3 Type A, 1 via header) |
| 2 USB 2.0 via header |
| Video | 1 VGA port (dedicated for IPMI) |
| Serial Port / Header | 1 COM port (rear) |
| TPM | 1 TPM 2.0 Header |
| System BIOS |
| BIOS Type | 256Mb SPI Flash with AMI BIOS |
| PC Health Monitoring |
| CPU | 4+1 Phase-switching voltage regulator |
| Monitors for CPU Cores, Chipset Voltages, Memory. |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Front Panel |
| Buttons | Power On/Off button |
| LED On/Off button |
| LEDs | Power LED |
| Ports | 1 headphone jack |
| 1 audio jack |
| 1 USB 3.2 Port (Type C) |
| 2 USB 3.2 Ports (Type A) |
| 2 USB 2.0 Ports |
| System Cooling |
| Water Cooling | Optional high-performance closed-loop water cooling for CPU |
| Fans | 1x 12cm rear exhaust fan |
| 2x 12cm front cooling fans |
| 3x 12cm top cooling fans (optional) |
| Power Supply |
| Power Supply | 2000W PS/2 Multi-Output Power Supply |
| Certification | Platinum Certified |
| Total Output Power and Input | 1200W with Input 100 - 115Vac |
| 1500W with Input 115 - 200Vac |
| 2000W with Input 200 - 264Vac |
| AC Input Frequency | 50-60Hz |
| Dimensions (W x H x L) | 150 x 86 x 200 mm |
| +5V | Max: 25A / Min: 0.1A |
| +12V | Max: 100A / Min: 0.1A (100-115Vac) |
| Max: 125A / Min: 0.1A (115-120Vac) |
| Max: 166.6A / Min: 0.1A (200-264Vac) |
| +3.3V | Max: 25A / Min: 0A |
| 5VSB | Max: 4A / Min: 0A |
| -12V | Max: 0.5A / Min: 0A |
| Output Type | 24pin ATX |
| Motherboard |
| Motherboard | Super M12SWA-TF |
| Processor/Cache |
| CPU | Socket sWRX8/SP3 |
| Supports CPU TDP up to 280W |
| Single AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series processor |
| Cores | Up to 64 Cores |
| Management |
| Software | Watchdog |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SSM , SPM , SUM |

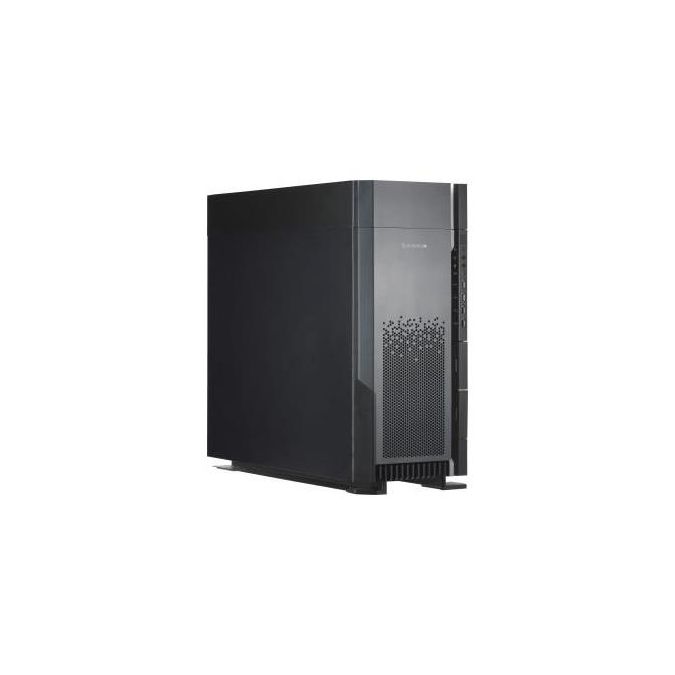

| Chassis |
| Form Factor | Full Tower |
| Optional Rackmount Kit (6U) |
| Model | CSE-GS7A-2000B |
| Dimensions and Weight |
| Height | 21.06' (535mm) |
| Width | 8.74' (222mm) |
| Depth | 22.56' (573mm) |
| Expansion Slots |
| PCI-Express | 6 PCI-E 4.0 x16 slots |
| M.2 | Key: M-Key |
| Form Factor: 2280, 22110 |
| M.2 Interface: 4 PCI-E 4.0 x4 |
| U.2 | Interface: 2 U.2 Sockets |
| Software RAID 0,1 support |
| Drive Bays |
| Fixed | 4 internal fixed 3.5'/2.5' SATA3 drive bays |
| 2 front fixed 2.5' SATA3 drive bays |
| Peripheral Bay(s) | 2x 5.25' drive bays |
| Operating Environment |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Product SKUs |
| Product SKUs | AS -5014A-TT (Black) |
