| Motherboard |
| Motherboard | Super X12DAI-N6 |
| Processor |
| CPU | 3rd Gen Intel® Xeon® Scalable processors |
| Dual Socket P+ (LGA-4189) |
| Support CPU TDP 270W * |
| Cores | Up to 40C/80T, Up to 60MB Cache |
| Note | *Certain CPU SKUs are conditionally supported, please contact Supermicro Technical Support for additional information about specialized system optimization |
| System Memory |
| Memory | Memory Capacity: 16 DIMM slots |
| Intel® Optane™ persistent memory 200 series |
| Memory Type: 3200MHz ECC DDR4 RDIMM, LRDIMM |
| Up to 2TB: 16x 128 GB DRAM |
| Up to 3TB: 8x 128 GB DRAM and 8x 256 GB PMem |
| Note | Memory DIMM capacities larger than 16GB are supported under certain conditions, please contact Supermicro Technical Support for additional information about specialized system optimization |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices |
| SATA | SATA3 (6Gbps), RAID 0/1/5/10 support |
| Chipset | Intel® C621A |
| Network Connectivity | 2x 1GbE port(s) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| SATA | 2 SuperDOM port(s) |
| LAN | 2 RJ45 1GbE (IPMI Shared on LAN port1) |
| USB | 6 USB 3.2 Gen1 port(s) (2 Front_USB, 4 Rear_USB) |
| 1 USB 3.2 Gen2 port(s) (1 Front_USB) |
| Video | 1 VGA port(s) |
| System BIOS |
| BIOS Type | AMI 32MB SPI FLASH ROM |
| Management |
| Software | Watch Dog |
| NMI |
| KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| IPMI 2.0 |
| SUM |
| SSM |
| SPM |
| Power Configurations | ACPI/APM Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |

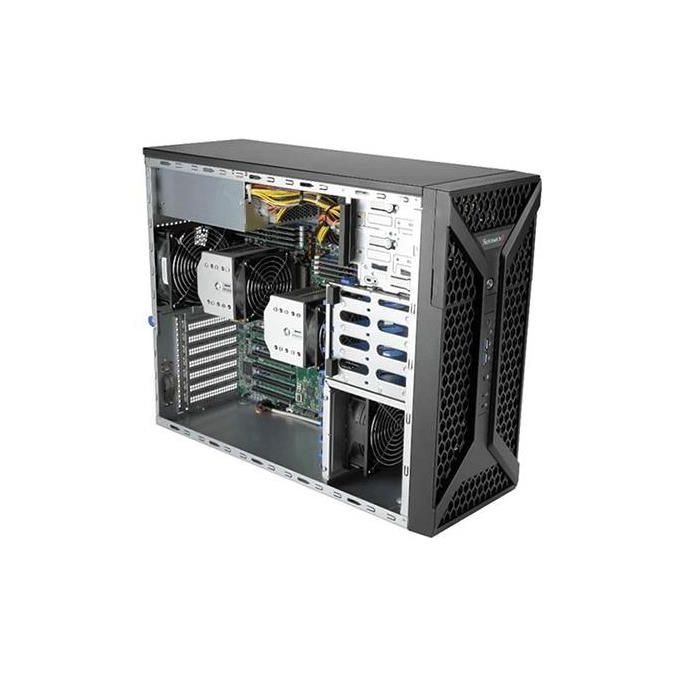

| Chassis |
| Form Factor | Mid-Tower |
| Model | CSE-735D4-1K26B |
| Dimensions and Weight |
| Height | 16.7' (424mm) |
| Width | 7.6' (193mm) |
| Depth | 20.68' (525.3mm) |
| Package | 21.38' (H) x 11.97' (W) x 25.28' (D) |
| Weight | Net Weight: 27 lbs (12.25 kg) |
| Gross Weight: 30 lbs (13.61 kg) |
| Available Color | black |
| Front Panel |
| Buttons | Power On/Off button |
| LEDs | HDD activity LED |
| Drive Bays / Storage |
| Drive Bays | 4x 3.5' SATA (NVMe optional) drive bays (4x 2.5' NVMe hybrid) |
| M.2 | 2 M.2 NVMe |
| Peripheral Bays | 2x 5.25' drive bays (optional) |
| System Cooling |
| Fans | 2x 12cm heavy duty fans with optimal fan speed control |
| Power Supply |
| Dimension (W x H x L) | 150 x 86 x 185 mm |
| AC Input | 100-240Vac / 8A Max / 50-60Hz |
| Output Type | Modular Cable Output |
| Certification | Platinum Level |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Product SKUs |
| Product SKUs | SYS-730A-I |
| Expansion Slots |
| PCI-Express (PCIe) | 5 PCIe 4.0 x16 FHFL slot(s) |
| 1 PCIe 4.0 x8 FHHL slot(s) |
