| Product SKUs |

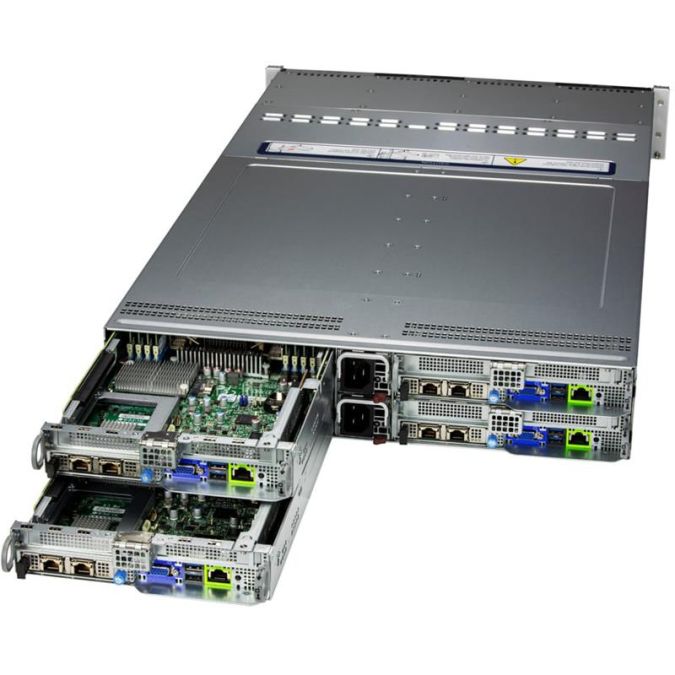

| Product SKUs | SYS-621BT-HNC8R |
| Motherboard |
| Motherboard | Super X13DET-B |
| Processor (per Node) |
| CPU | 4th Gen Intel® Xeon® Scalable processors |
| Intel Xeon CPU Max Series with high bandwidth memory (HBM) |
| Dual Socket E (LGA 4677) |
| Cores | Up to 32C/64T, Up to 82.5MB Cache |
| Note | Supports up to 350W TDP CPUs (Liquid Cooled) |
| *CPUs (Air Cooled) with TDP over 185W are only supported under specific conditions. Contact customer support for details. |
| Supports up to 185W TDP CPUs (Air Cooled)* |
| System Memory (per Node) |
| Memory | Memory Capacity: 16 DIMM slots |
| Up to 4TB: 16x 256 GB DRAM |
| Memory Type: 4800MHz ECC DDR5 RDIMM |
| On-Board Devices (per Node) |
| SAS | SAS3 (12Gbps) via Broadcom® 3808 (IT mode) |
| Chipset | Intel® C741 |
| Network Connectivity | Via AIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output (per Node) |
| LAN | 1 RJ45 Dedicated BMC LAN port |
| USB | 2 USB 3.1 port(s) (2 rear) |
| Video | 1 VGA port(s) |
| Others | 2x M.2 for boot drive or caching M.2 form factor: NVMe double-sided 22x110mm Note: Enterprise-grade M.2 only for caching application |
| System BIOS |
| BIOS Type | AMI 32MB Flash ROM |
| Management |
| Software | Watch Dog |
| KVM with dedicated LAN |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SUM |
| SSM |
| SPM |
| SuperCloud Composer |
| Supermicro Out of Band (OOB) License (Included per Node) |
| Power Configurations | ACPI / APM Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. |
| 8+4 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-827BQ2-R3K04P |
| Dimensions and Weight |
| Height | 3.47' (88mm) |
| Width | 17.68' (449mm) |
| Depth | 30.5' (774mm) |
| Package | 9.76' (H) x 24.65' (W) x 45.28' (D) |
| Weight | Net Weight: 66.1 lbs (30 kg) |
| Gross Weight: 96.6 lbs (43.8 kg) |
| Available Color | Black front & silver body |
| Front Panel |
| Buttons | Power On/Off button |
| UID button |
| LEDs | Network activity LEDs |
| Power status LED |
| HDD activity LED |
| Universal Information (UID) LED |
| Expansion Slots (per Node) |
| PCI-Express (PCIe) | 2 PCIe 5.0 x16 LP slot(s) |
| Drive Bays / Storage (per Node) |
| Hot-swap | 3x 3.5' hot-swap NVMe/SAS drive bays (2x PCI-E 5.0 NVMe/SAS and 1x PCI-E 4.0 NVMe/SAS) |
| M.2 | 2 M.2 NVMe |
| System Cooling |
| Fans | 4x 14.9K RPM Heavy Duty 8cm Fan(s) |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply |
| Total Output Power | 3000W : 208 - 240 Vac |
| 3000W : 240 - 240 Vdc for CQC only |
| Dimension (W x H x L) | 45 x 40 x 480 mm |
| AC Input | 1400W: 100-127Vac / 50-60Hz |
| 2880W: 200-207Vac / 50-60Hz |
| 3000W: 208-240Vac / 50-60Hz |
| DC Input | 3000W: 240-240Vdc for CQC only/ 50-60Hz |
| 12V SB | Max: 4.5A / Min: 0A |
| Certification | Titanium Level |
| Operating Environment |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity: 8% to 90% (Non-Condensing) |
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
