| Motherboard |
| Motherboard | Super X12STD-F |
| Processor (per Node) |
| CPU | Single Socket H5 (LGA 1200,Socket H5 LGA 1200) |
| Intel® Xeon® E-2300 series and Pentium processor,Support Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors |
| Support CPU TDP 80-95W |
| Cores | Up to 8C/16T, Up to 16MB Cache |
| System Memory (per Node) |
| Memory | Memory Capacity: 4 DIMM slots |
| Up to 128: 4x 32 GB DRAM |
| Memory Type: 3200MHz ECC DDR4 UDIMM |
| On-Board Devices (per Node) |
| SATA | SATA (6Gbps) via Intel® C256, RAID 0, 1, 5, 10 support |
| Chipset | Intel® C256 |
| Network Connectivity | No NIC option supported |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output (per Node) |
| SATA | 2 SATA3 (6Gbps) port(s) |
| LAN | 2 |
| Video | 1 VGA port(s) |
| Serial Port | 1 COM Port(s) (1 KVM) |
| System BIOS |
| BIOS Type | AMI 128MB SPI Flash EEPROM |
| Management |
| Software | Watch Dog |
| Intel Node Manager |
| KVM with dedicated LAN |
| SuperDoctor® 5 |
| IPMI 2.0 |
| SUM |
| SSM |
| SPM |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI 6.0 Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. |
| 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V |
| FAN | Cooling zone |
| Temperature | Monitoring for CPU and chassis environment |

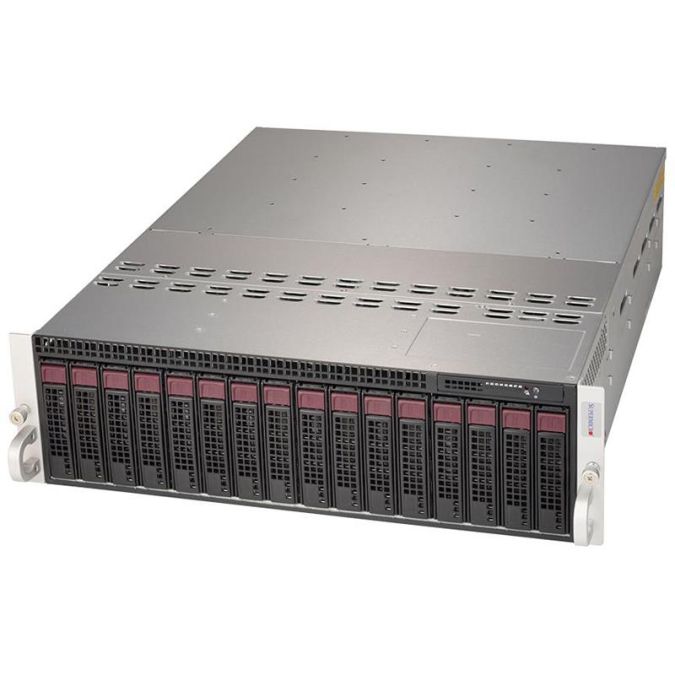

| Chassis |
| Form Factor | 3U Rackmount |
| Model | CSE-938NH-R2K04BP2 |
| Dimensions and Weight |
| Height | 5.21' (132mm) |
| Width | 17.26' (438mm) |
| Depth | 23.2' (589mm) |
| Package | 11.65' (H) x 26.26' (W) x 34' (D) |
| Weight | Net Weight: 62.2 lbs (28.21 kg) |
| Gross Weight: 88 lbs (39.92 kg) |
| Available Color | Black |
| Front Panel |
| Buttons | Power On/Off |
| LEDs | 8 Individual Node Status Indicators |
| Power Failure |
| Drive Bays / Storage (per Node) |
| Hot-swap | 2x 3.5' hot-swap NVMe/SATA/SAS drive bays |
| M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 |
| System Cooling |
| Fans | 4x 8cm heavy duty fans with optimal fan speed control |
| Air Shroud | 8 Air Shroud(s) |
| Power Supply |
| Dimension (W x H x L) | 76 x 40 x 360 mm |
| AC Input | 1000W: 100-127Vac / 9.5A-12A / 50-60Hz |
| 2000W: 200-240Vac / 9.8A-11.8A / 50-60Hz |
| +12V | Max: 83.3A / Min: 0A (100Vdc-127Vdc) |
| Max: 166.7A / Min: 0A (200Vdc-240Vdc) |
| 5V SB | Max: 1A / Min: 0A |
| Output Type | 27 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs |
| Product SKUs | SYS-530MT-H8TNR |
| Expansion Slots (per Node) |
| PCI-Express (PCIe) | 1 PCIe 4.0 x16 LP slot(s) |
| 1 PCIe 4.0 x8 MLP slot(s) |
