| Product SKUs |

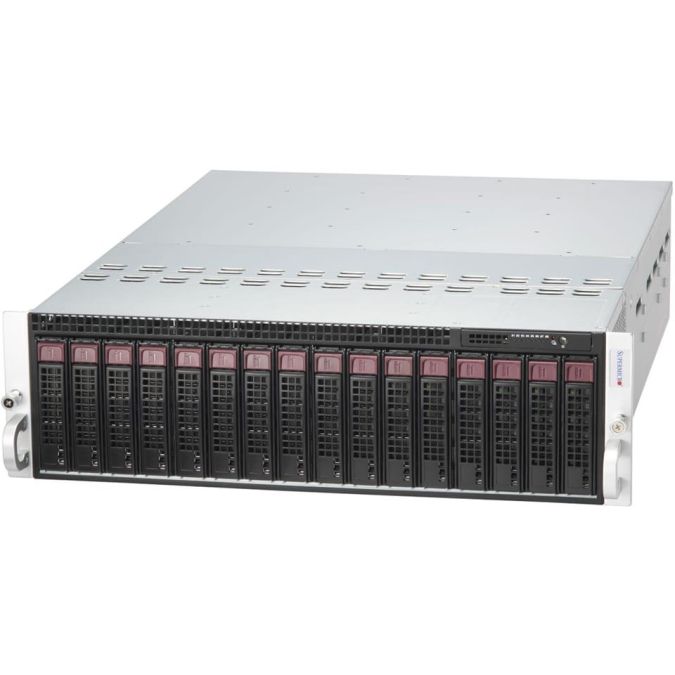

| Product SKUs | SYS-531MC-H8TNR |
| Motherboard |
| Motherboard | Super X13SCD-F |
| Processor (per Node) |
| CPU | Single LGA-1700 |
| Intel® Xeon® E-2400/Pentium® G7400 and G6400T Processors |
| Note | Supports up to 95W TDP CPUs (Air Cooled) |
| GPU (per Node) |
| Max GPU Count | Up to 1 single-width GPU(s) |
| System Memory (per Node) |
| Memory | Slot Count: 4 DIMM slots |
| Max Memory (2DPC): Up to 192GB 4400MT/s ECC DDR5 UDIMM |
| View Memory Options |
| On-Board Devices (per Node) |
| SATA | SATA (6Gbps) , RAID 0/1/5/10 support |
| Chipset | Intel® C266 |
| Network Connectivity | No NIC option supported |
| View AOC Options |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output (per Node) |
| USB | 1 Type-C port(s) (front) |
| 2 USB 2.0 Type-A port(s) |
| Video | 1 port(s) |
| System BIOS |
| BIOS Type | AMI 128MB SPI Flash EEPROM |
| Management |
| Software | KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| IPMI 2.0 |
| Supermicro Update Manager (SUM) |
| Supermicro Server Manager (SSM) |
| Super Diagnostics Offline |
| Power configurations | Power-on mode for AC power recovery |
| ACPI 6.0 Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. |
| 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V |
| FAN | Fan speed control, Dual Cooling Zone |
| Chassis |
| Form Factor | 3U Rackmount |
| Model | CSE-938NH-R2K20BP2 |
| Dimensions and Weight |
| Height | 5.21' (132 mm) |
| Width | 17.26' (438 mm) |
| Depth | 23.2' (589 mm) |
| Package | 11.65' (H) x 26.26' (W) x 34' (D) |
| Weight | Net Weight: 62.2 lbs (28.21 kg) |
| Gross Weight: 88 lbs (39.92 kg) |
| Available Color | N/A |
| Front Panel |
| LED | 8 Individual Node Status Indicators |
| Power Failure |
| Buttons | Power On/Off |
| Expansion Slots (per Node) |
| PCI-Express (PCIe) Configuration |
| Drive Bays / Storage (per Node) |
| Drive Bays Configuration | Default: Total 2 bay(s) 2 front hot-swap 3.5' NVMe/SAS/SATA drive bay(s) |
| 2 front hot-swap 3.5' NVMe/SAS/SATA drive bay(s) |
| View Drive Options |
| M.2 | 2 M.2 NVMe/SATA slot(s) (M-key 2280/22110) |
| View M.2 Options |
| System Cooling |
| Fans | 4 Heavy Duty 8cm Fan(s) |
| Power Supply |
| Dimension (WxHxL) | 76 x 40 x 336 mm |
| +12V | Max: 150A / Min: 0A (200Vac-220Vac) |
| Max: 165A / Min: 0A (220Vac-230Vac) |
| Max: 100A / Min: 0A (100Vac-127Vac) |
| Max: 174.17A / Min: 0A (230Vac-240Vac) |
| Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only) |
| Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only) |
| Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only) |
| 5V SB | Max: 1A / Min: 0A |
| AC Input | 1800W: 200-220Vac / 50-60Hz |
| 1980W: 220-230Vac / 50-60Hz |
| 1200W: 100-127Vac / 50-60Hz |
| 2090W: 230-240Vac / 50-60Hz |
| 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only) |
| 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) |
| 2090W: 230-240Vdc / 50-60Hz (for CCC only) |
| Output Type | Backplanes (gold finger) |
| Operating Environment |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 8% to 95% (non-condensing) |
