| Product SKUs |

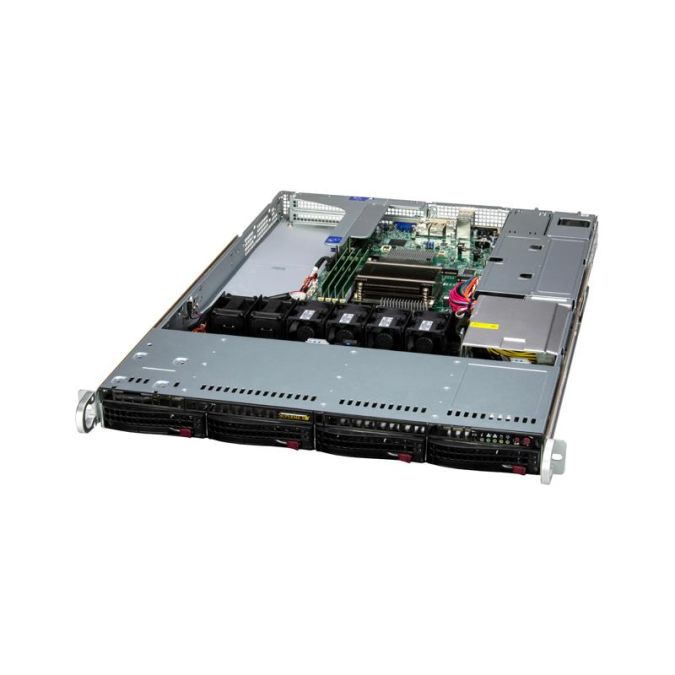

| Product SKUs | SYS-511R-W |
| Motherboard |
| Motherboard | Super X13SCW-F |
| Processor |
| CPU | Single processor(s) |
| Intel® Xeon® E-2400 series Processors and 12th Gen. Pentium® Processors |
| Core Count | Up to 8C/16T, Up to 24MB Cache |
| Note | Supports up to 95W TDP CPUs (Air Cooled) |
| GPU |
| Max GPU Count | Up to 1 double-width or 1 single-width GPU(s) |
| Supported GPU | View GPU Options |
| NVIDIANVIDIA A30 PCIe: L40, RTX A4000, RTX A2000, L4 |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| System Memory |
| Memory | View Memory Options |
| Slot Count: 4 DIMM slots/2 Channels |
| Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
| SATA | SATA (6Gbps) , RAID 0/1/5/10 support |
| Chipset | Intel® C266 |
| Network Connectivity | View AOC Options |
| 2 RJ45 1GbE with Intel® I210 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| LAN | 2 RJ45 1 GbE LAN port(s) |
| 1 RJ45 1 GbE Dedicated IPMI LAN port(s) (IPMI shared on LAN port 1) |
| USB | 4 USB 2.0 port(s) (header) |
| 2 USB 2.0 Type-A port(s) (rear) |
| 2 USB 3.2 Gen1 port(s) (Header) |
| 1 USB 3.2 Gen2 Type-A port(s) (Header) |
| 2 USB 3.2 Gen2 Type-A port(s) (Rear) |
| Video | 1 VGA port(s) |
| Serial | 1 COM port(s) (Rear) |
| 1 COM port(s) (Header) |
| TPM | 1 TPM header |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| IPMI 2.0 |
| Supermicro Update Manager (SUM) |
| Supermicro Server Manager (SSM) |
| Super Diagnostics Offline |
| Power configurations | ACPI/APM Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 6 + 1 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 1U |
| Model | CSE-815BTS-R000WNP |
| Dimensions and Weight |
| Height | 1.7' (43 mm) |
| Width | 17.2' (437 mm) |
| Depth | 25.6' (650 mm) |
| Package | 8.5' (H) x 23.5' (W) x 33.7' (D) |
| Weight | Gross Weight: 34.5 lbs (15.46 kg) |
| Net Weight: 21.5 lbs (9.75 kg) |
| Available Color | Black |
| Front Panel |
| LED | Power status LED |
| HDD activity LED |
| Unit Identification (UID) LED |
| Fan Fail/System Over Heat LED |
| Network Activity LEDs |
| Buttons | Power On/Off button |
| System Reset button |
| Unit Identification (UID) button |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| Drive Bays / Storage |
| Drive Bays Configuration | View Drive Options |
| Default: Total 4 bay(s) 4 front hot-swap 3.5' SAS*/SATA drive bay(s) |
| 4 front hot-swap 3.5' SAS*/SATA drive bay(s) |
| Option A: Total 4 bay(s) 2 front hot-swap 3.5' PCIe 4.0 NVMe*/SAS*/SATA drive bay(s) 2 front hot-swap 3.5' SAS*/SATA drive bay(s) |
| 2 front hot-swap 3.5' PCIe 4.0 NVMe*/SAS*/SATA drive bay(s) |
| 2 front hot-swap 3.5' SAS*/SATA drive bay(s) |
| (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) |
| M.2 | View M.2 Options |
| 2 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key 2280/22110) |
| Peripheral Bays | 2 2.5' bay(s) (optional) |
| System Cooling |
| Fans | 2 AOC cooling Fan(s) (optional) |
| 4 counter-rotation PWM 40x40x56mm Fan(s) |
| Power Supply |
| Dimension (WxHxL) | 54.5 x 40.25 x 322 mm |
| +12V | Max: 50A / Min: 0A (100Vac-127Vac) |
| Max: 50A / Min: 0A (200Vdc-240Vdc) |
| Max: 50A / Min: 0A (200Vac-240Vac) |
| 5V SB | Max: 4A / Min: 0A |
| AC Input | 600W: 100-127Vac / 50-60Hz |
| 600W: 200-240Vdc / 50-60Hz |
| 600W: 200-240Vac / 50-60Hz |
| Output Type | Backplanes (gold finger) |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) |
| Operating Relative Humidity: 8% to 80% (non-condensing) |
| Non-operating Relative Humidity: 8% to 90% (non-condensing) |
