| Product SKUs |

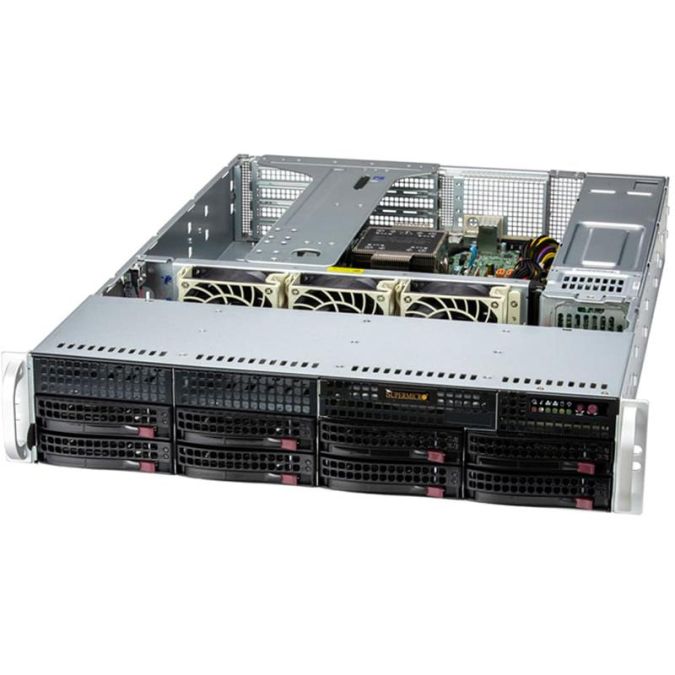

| Product SKUs | SYS-521E-WR |
| Motherboard |
| Motherboard | Super X13SEW-F |
| Processor |
| CPU | 4th Gen Intel® Xeon® Scalable processors |
| Single Socket E (LGA 4677) |
| Cores | Up to 52C/104T, Up to 97.5MB Cache |
| Note | Supports up to 300W TDP CPUs (Air Cooled) |
| System Memory |
| Memory | Memory Capacity: 8 DIMM slots |
| Up to 2TB: 8x 256 GB DRAM |
| Memory Type: 4800/4400MHz ECC DDR5 RDIMM |
| Memory Voltage | 1.1 V |
| Error Detection | Yes |
| On-Board Devices |
| SATA | SATA3 (6Gbps), RAID 0/1/5/10 support |
| NVMe | NVMe |
| Chipset | Intel® C741 |
| Network Connectivity | 2x 1GbE BaseT with Intel® i210 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| SATA | 10 SATA (6Gbps) port(s) |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| 2 RJ45 1GbE LAN ports |
| USB | 4 USB 3.2 Gen 1 port(s) (2 headers, 2 rear) |
| 3 USB 2.0 port(s) (2 rear, 1 Type A) |
| Video | 1 VGA port(s) |
| Serial Port | 2 COM Port(s) (1 header, 1 rear) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | NMI |
| KVM with dedicated LAN |
| Redfish API |
| Intel® Node Manager |
| SUM |
| SSM |
| SPM |
| IPMI2.0 |
| Supemicro Out of Band (OOB) License (Included per Node) |
| SuperCloud Composer |
| Power Configurations | ACPI/APM Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 8 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-825B2TS-R920WP |
| Dimensions and Weight |
| Height | 3.5' (89mm) |
| Width | 17.2' (437mm) |
| Depth | 25.5' (647mm) |
| Package | 11' (H) x 26.5' (W) x 34' (D) |
| Weight | Net Weight: 34 lbs (15.42 kg) |
| Gross Weight: 59 lbs (26.76 kg) |
| Available Color | Black |
| Front Panel |
| Buttons | System Reset |
| Power On/Off |
| LEDs | Power status |
| System information |
| Device Activity |
| LAN 1 Activity |
| LAN 2 Activity |
| Power Failure LED |
| Expansion Slots |
| PCI-Express (PCIe) | 2 PCIe 5.0 x8 LP slot(s) |
| 2 PCIe 5.0 x16 FHFL slot(s) |
| Note | Default loadout. (For more configs, please contact sales) |
| FH slots can be reconfigured with RSC-W2-688G5. Acronyms: (FH = Full Height, LP = Low Profile, FL = Full Length, HL = Half Length) |
| Drive Bays / Storage |
| Drive Bays | 8x 3.5' NVMe/SATA/SAS drive bays (4x 3.5' NVMe hybrid) |
| M.2 | M-key, 2280, 22110 |
| 1x PCIe 3.0 x 2 |
| Peripheral Bays | 2x 2.5' drive bays |
| System Cooling |
| Fans | 3 heavy duty PWM 80x80x38mm Fan(s) |
| Power Supply |
| Dimension (W x H x L) | 76 x 40 x 336 mm |
| AC Input | 920W: 100-127Vac / 8.5A-11A / 50-60Hz |
| 920W: 200-240Vac / 4.5A-5.5A / 50-60Hz |
| Output Type | Backplanes (gold finger) |
| Certification | platinum Level |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) |
| Operating Relative Humidity: 8% to 80% (non-condensing) |
| Non-operating Relative Humidity: 8% to 90% (non-condensing) |
