| Product SKUs |

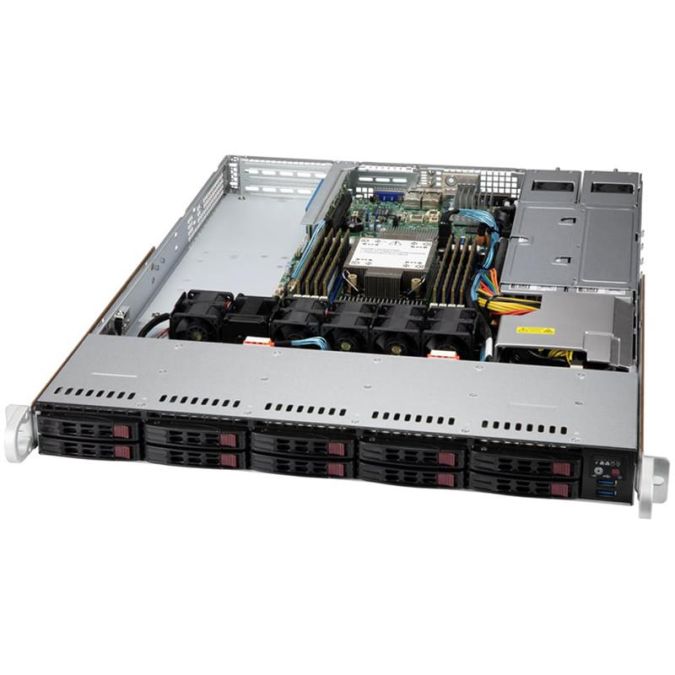

| Product SKUs | SYS-110P-WR |
| Motherboard |
| Motherboard | Super X12SPW-F |
| Processor |
| CPU | Support CPU TDP 270W |
| Single Socket P+ (LGA 4189) |
| Support Intel® 3rd Gen Xeon® Scalable Processors |
| Cores | Up to 40C/80T, Up to 60MB Cache |
| System Memory |
| Memory | Intel® Optane™ persistent memory 200 series |
| Memory Capacity: 8 DIMM slots |
| Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM,LRDIMM |
| Up to 2TB: 8x 256 GB DRAM |
| Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem |
| Memory Voltage | 1.2 V |
| Error Detection | Yes |
| On-Board Devices |
| SATA | SATA3 (6Gbps), RAID 0/1/5/10 support |
| NVMe | NVMe, RAID 0/1/5/10 support (*VROC HW key is required) |
| Chipset | Intel® C621A |
| Network Connectivity | 2x 1GbE BaseT with Intel® i210 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| SATA | 10 SATA (6Gbps) port(s) |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| 2 RJ45 1GbE LAN ports |
| USB | 3 USB port(s) (2 headers, 1 Type A) |
| 2 USB 2.0 port(s) (2 rear) |
| 4 USB 3.2 Gen 1 port(s) (2 front, 2 rear) |
| Video | 1 VGA 2 port(s) |
| Serial Port | 2 COM Port(s) (1 header, 1 rear) |
| DOM | 2 Super DOM (Disk on Module) port with built-in power |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | NMI |
| KVM with dedicated LAN |
| Redfish API |
| Intel® Node Manager |
| SUM |
| SSM |
| SPM |
| IPMI2.0 |
| Supermicro Out of Band (OOB) License |
| Power Configurations | ACPI/APM Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 7+1 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 1U Rackmount |
| Model | CSE-116TS-R706WBP4 |
| Dimensions and Weight |
| Height | 1.7' (43mm) |
| Width | 17.2' (437mm) |
| Depth | 23.5' (597mm) |
| Package | 8' (H) x 24' (W) x 32' (D) |
| Weight | Net Weight: 25 lbs (11.34 kg) |
| Gross Weight: 38 lbs (17.24 kg) |
| Available Color | Black |
| Front Panel |
| Buttons | UID button |
| Power On/Off |
| LEDs | Power status |
| System information |
| Device Activity |
| LAN 1 Activity |
| LAN 2 Activity |
| Expansion Slots |
| PCI-Express (PCIe) | 2 PCIe 4.0 x16 FHFL slot(s) |
| 1 PCIe 4.0 x16 LP slot(s) |
| Drive Bays / Storage |
| Drive Bays | 10x 2.5' SATA drive bays (4x 2.5' NVMe hybrid) |
| M.2 | M-key, 2280, 22110 |
| 1x PCIe 3.0 x 4 and SATA |
| System Cooling |
| Fans | 1 AOC cooling Fan(s) (optional) |
| 5 counter-rotation PWM 40x40x56mm Fan(s) |
| Power Supply |
| Total Output Power | 750W |
| Dimension (W x H x L) | 54.5 x 40.25 x 320 mm |
| AC Input | 750W: 100-240Vac / 3.8A-8A / 50-60Hz |
| +12V | Max: 62A / Min: 0.5A |
| 5V SB | Max: 3A / Min: 0A |
| Output Type | Gold Finger Connector |
| Certification | Platinum Level |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
