| Main Specifications |

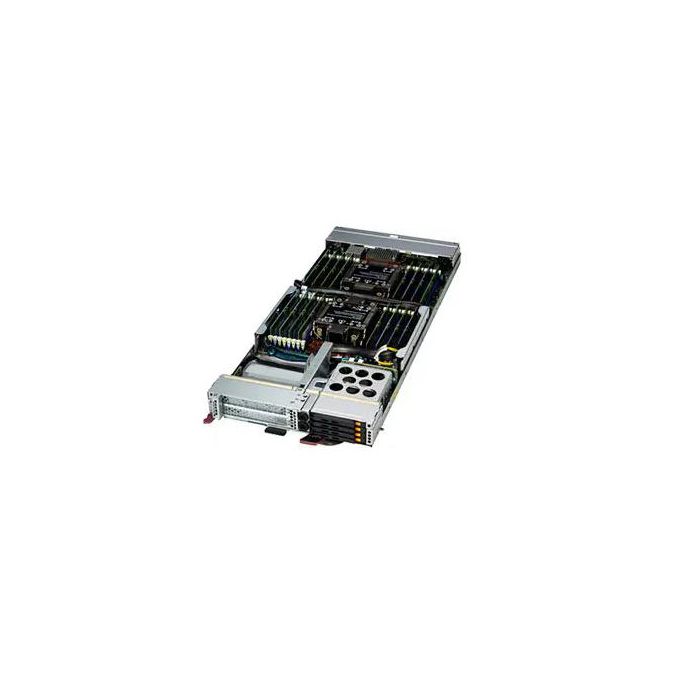

| Device Type | SuperBlade Sled |
| Built-in Devices | MBD-B14DBE |
| Dimensions (WxDxH) | Height 1.7' x Width 9.83' x Depth 24.8' |
| Enclosure Color | Metalic Silver with Black Drive Bays |
| Weight | 8.36 lbs |
| Processor |
| Compatible Processors | Intel Xeon 6700/6500 series processors with E-cores or P-cores |
| Compatible Socket | Dual Socket E2 (LGA-4710), Up to 350W TDP |
| Cache/Core | Up to 144 E-cores or 86 P-cores |
| Note | Supports up to 250W TDP CPUs (Air Cooled) |
| Direct liquid cooling solution is available |
| GPU |
| CPU-GPU Interconnect | Up to 2 LP PCIe 5.0 x16 GPUs |
| System Memory |
| Memory Capacity | 32 DIMM slots, Up to 8TB ECC Registered RDIMM (3DS), DDR5-6400MT/s Up to 1TB ECC Registered MRDIMM for P-core CPU |
| Memory Type | ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC), ECC Registered MRDIMM up to 64GB of memory with speed up to 8000MT/s (1DPC) |
| DIMM Sizes | RDIMM (3DS) 16GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB MRDIMM 32GB, 64GB |
| Memory Voltage | 1.1 V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | System on Chip |
| Network Controllers | Onboard Dual 25G Ethernet port with Intel Controller E810-XXVAM2, 1 expansion slot with optional mezzanine cards with Dual 25G Ethernet port |
| MGMT/Security | IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust |
| Graphics | Aspeed AST2600 |
| TPM | 1 TPM 2.0 header |
| System BIOS |
| BIOS Type | 64Mb SPI Flash EEPROM with AMI BIOS |
| Front Panel |
| Buttons | Power On/Off button |
| LEDs | Power LED, UID LED, Network Activity LED, Fault LED |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 2 PCIe 5.0 x16 slots, support 2 HHHL single-width PCIe cards |
| Drive Bays / Storage |
| Drive Bays / Storage | 4 Hot-swap E3.S drive bays |
| Optional: 2 M.2 2280 NVMe SSDs via adapter |
| Miscellaneous |
| Environmental Compliance | RoHS Compliant |
| Environmental |
| Operating Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
