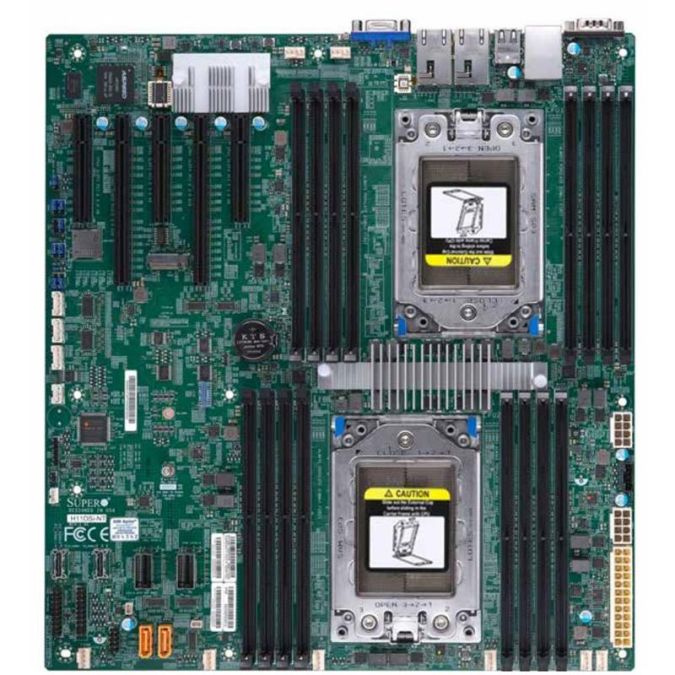

Supermicro H11DSI-NT-B Motherboard E-ATX Dual Socket (SP3) AMD EPYC 7001/7002 Series Processors
| Applicability | AI / ML — server platform / infrastructure |
|---|---|
| Manufacturer | Supermicro |
| SKU | H11DSI-NT-B |
| Product Type | Embedded Server Motherboard |
Dual AMD EPYC 7001/7002 Series Processors (AMD EPYC 7002 series drop-in support requires board revision 2.x)
2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs, 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required)
Expansion slots: 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8
M.2 Interface: 1 SATA/PCI-E 3.0 x2 (Platform with EPYC 7002 processor only supports PCI-E type M.2 module)
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
10 SATA3, 1 M.2, 2 SATA DOM
Dual 10GBase-T LAN Ports
ASPEED AST2500 BMC graphics
Up to 2 USB 3.0 ports, Up to 4 USB 2.0 ports
8 4-pin PWM Fan & Speed control
