More Information
| Applicability |
Enterprise server / data center platform |
| Manufacturer |
Supermicro |
| SKU |

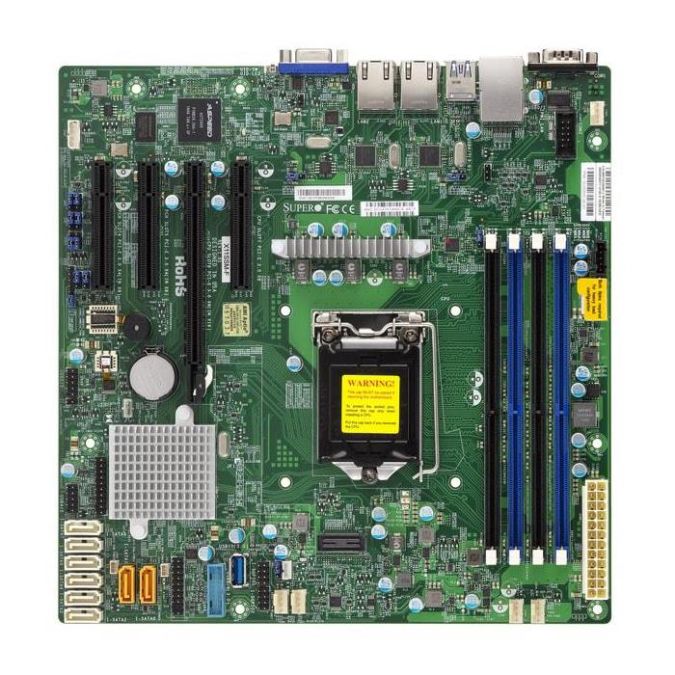

X11SSM-F |
| Product Type |
Embedded Server Motherboard |
1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
2. Intel® C236 chipset
3. Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz, 4 DIMM slots
4. Expansion slots:1 PCIe 3.0 x8 (in x16),1 PCIe 3.0 x8,2 PCIe 3.0 x4 (in x8)
5. Dual GbE LAN with Intel® i210-AT
6. 8 SATA3 (6Gbps) via C236,RAID 0, 1, 5, 10
7. Integrated IPMI 2.0 and KVM with Dedicated LAN
8. 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))
9. I/O: 1 VGA, 2 COM, 2 SuperDOM, and TPM header
|
