| System Memory |
| Memory Voltage | 1.1 V |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| Memory | Memory Capacity: 24 DIMM slots |
| Up to 6TB: 3DS ECC Registered RDIMM, DDR5-4800MHz |
| Memory Type: 4800MHz ECC DDR5 RDIMM Up to 512GB of memory |
| Note | For optimal performance AMD recommends full memory population |
| On-Board Devices |
| Chipset | System on Chip |
| Network Connectivity | Via AIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| LAN | 1 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 port(s) (2 rear) |
| Video | 1 VGA port(s) |
| System BIOS |
| BIOS Type | AMI 256MB SPI Flash |
| BIOS Features | USB Keyboard support |
| Plug and Play (PnP) |
| ACPI 6.4 |
| SMBIOS 3.5 or later |
| UEFI 2.8 |
| Management |
| Software | Watch Dog |
| SuperDoctor® 5 |
| SUM |
| SSM |
| SPM |
| IPMIView for Linux/ Windows |
| IPMICFG |
| Power Configurations | ACPI Power Management |
| Power-on mode control for AC power loss recovery |
| PC Health Monitoring |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Front Panel |
| Buttons | UID button |
| Power On/Off |
| LEDs | HDD activity |
| Power status |
| LAN1 activity |
| System information |
| Power Supply |
| Certification | Titanium Level |
| Dimension (W x H x L) | 73.5 x 40 x 265 mm |
| AC Input | 1000W: 100-127Vac / 12A-9A / 50-60Hz |
| 1600W: 200-240Vac / 9A-7.5A / 50-60Hz |
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) |
| Max: 133.3A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 3.5A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Product SKUs |
| Product SKUs | AS -2125HS-TNR |
| Motherboard |
| Motherboard | Super H13DSH |
| Processor |
| CPU | 4th Generation AMD EPYC™ 9004 Series Processor |
| Support CPU TDP up to 360W * |
| Dual Socket SP5 |
| Cores | Up to 192C/384T |
| Note | *Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization |
| Chassis |
| Form Factor | 2U |
| Model | CSE-HS219-R1K63P-A |
| Dimensions and Weight |
| Height | 3.5' (88.9mm) |
| Width | 17.2' (437mm) |
| Depth | 29.9' (760mm) |
| Package | 10.4' (H) x 23.8' (W) x 43.6' (D) |
| Weight | Net Weight: 39 lbs (17.7 kg) |
| Gross Weight: 72 lbs (32.7 kg) |
| Available Color | Black front & sliver body |
| Expansion Slots |
| PCI-Express (PCIe) | 4 (Optional) PCIe 5.0 x16 or x8 FH, 10.5'L slot(s) |
| 4 (Optional) PCIe 5.0 x8 FH, 10.5'L slot(s) |
| Drive Bays / Storage |

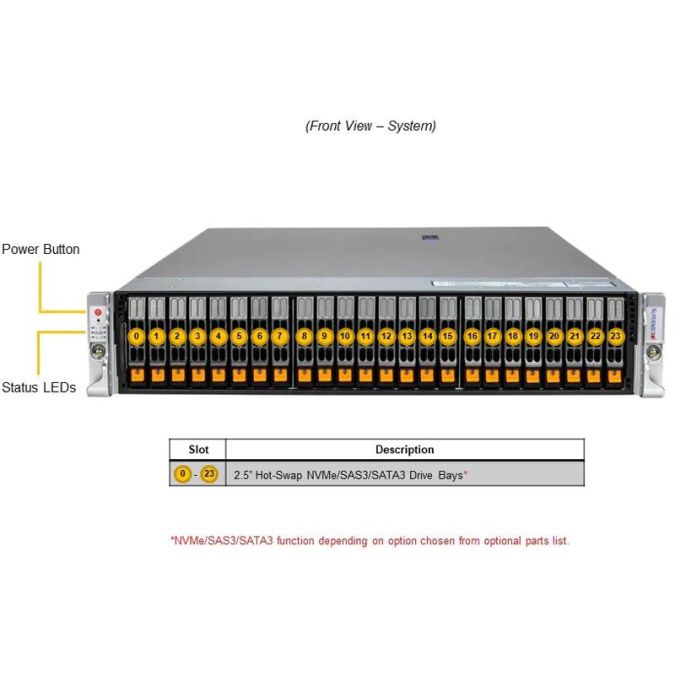

| Hot-swap | 24x 2.5' hot-swap NVMe/SATA/SAS drive bays |
| M.2 | M-Key, 2280/22110 |
| 2x NVMe (PCIe 3.0 x4, Boot drive only) |
| System Cooling |
| Fans | 4x 8cm heavy duty fans with optimal fan speed control |
| Air Shroud | 2 Air Shroud(s) |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Note | Operating Temperature based on configurations |
