| Motherboard |
| Motherboard | Super X12STL-F |
| Processor |
| CPU | Support CPU TDP 95W |
| Single Socket H5 (LGA 1200) |
| Support Intel® Xeon® E-2300 series Processors and 10th Gen. Pentium® Processors |
| Cores | Up to 8C/16T, Up to 16MB Cache |
| System Memory |
| Memory | Memory Capacity: 4 DIMM slots |
| Memory Type: 3200/2933/2666MHz ECC DDR4 UDIMM |
| Up to 128GB: 4x 32 GB DRAM |
| Memory Voltage | 1.2 V |
| Error Detection | Yes |
| On-Board Devices |
| SATA | SATA3 (6Gbps), RAID 0/1/5/10 support |
| Chipset | Intel® C252 |
| Network Connectivity | 2x 1GbE BaseT with Intel® i210 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| SATA | 6 SATA (6Gbps) port(s) |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| 2 RJ45 1GbE LAN ports |
| USB | 4 USB 2.0 port(s) (2 headers, 2 rear) |
| 5 USB 3.2 Gen 1 port(s) (2 headers, 2 rear, 1 Type A) |
| Video | 1 VGA port(s) |
| Serial Port | 2 COM Port(s) (1 header, 1 rear) |
| DOM | 2 Super DOM (Disk on Module) port with built-in power |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | NMI |
| KVM with dedicated LAN |
| Redfish API |
| SUM |
| SSM |
| SPM |
| IPMI2.0 |
| Power Configurations | ACPI/APM Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 6 + 1 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | Mini-1U |
| Model | CSE-512F-350B1 |
| Dimensions and Weight |
| Height | 1.7' (43mm) |
| Width | 17.2' (437mm) |
| Depth | 14.5' (368mm) |
| Package | 6.3' (H) x 22' (W) x 20' (D) |
| Weight | Net Weight: 11 lbs (4.99 kg) |
| Gross Weight: 14 lbs (6.35 kg) |
| Available Color | Black |

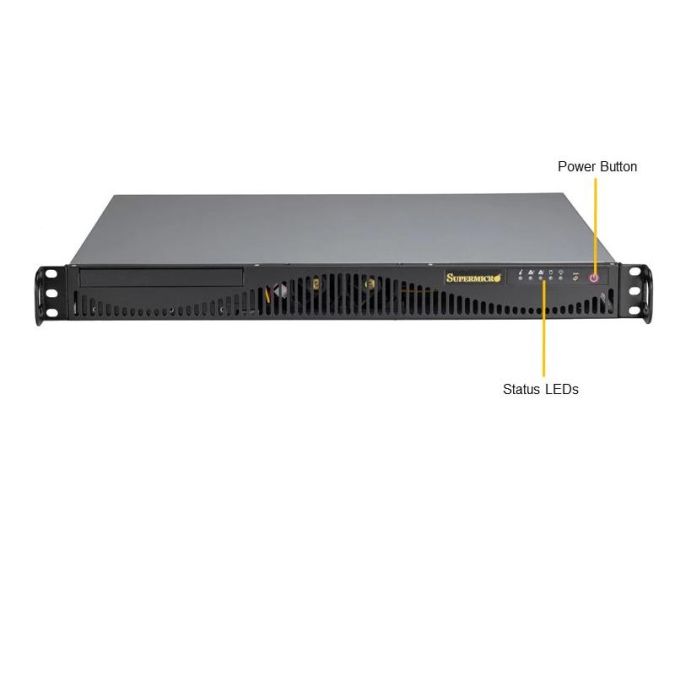

| Front Panel |
| Buttons | System Reset |
| Power On/Off |
| LEDs | Power status |
| System information |
| Device Activity |
| LAN 1 Activity |
| LAN 2 Activity |
| Drive Bays / Storage |
| Drive Bays | 2x 3.5' SATA drive bays |
| M.2 | M-key, 2280, 22110 |
| 1x PCIe 3.0 x 4 |
| System Cooling |
| Fans | 2 counter-rotation PWM 40x40x56mm Fan(s) |
| Power Supply |
| Total Output Power | 350W |
| Dimension (W x H x L) | 100 x 40 x 180 mm |
| AC Input | 350W: 100-240Vac / 2.5A-5A / 50-60Hz |
| +12V | Max: 29A / Min: 0.5A |
| 5V SB | Max: 3A / Min: 0A |
| Certification | Platinum Level |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs |
| Product SKUs | SYS-510T-ML |
| Expansion Slots |
| PCI-Express (PCIe) | 1 PCIe 4.0 x8 slot(s) |
