| Product SKUs |

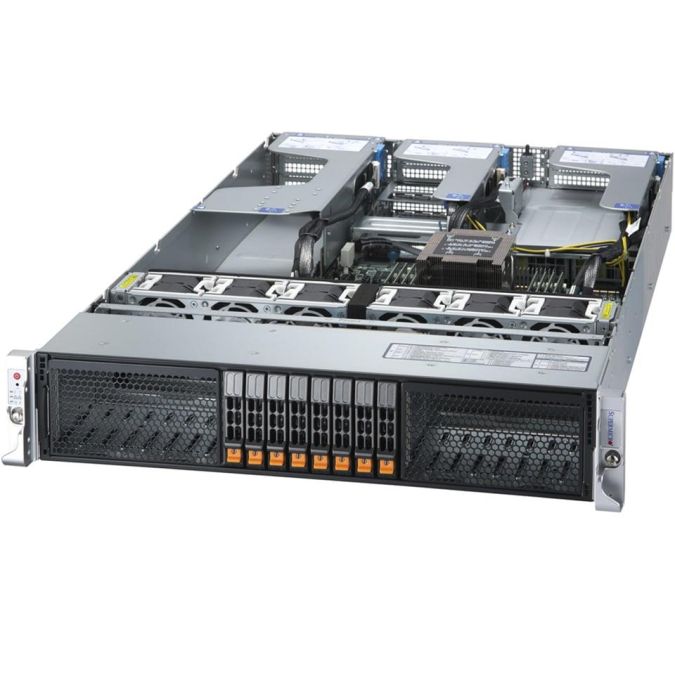

| Product SKUs | AS -2115HV-TNRT |
| Motherboard |
| Motherboard | Super H13SRH |
| Processor |
| CPU | Single processor(s) |
| AMD Ryzen™ Threadripper™ PRO 7000 WX-Series |
| Core Count | Up to 96C/192T, Up to 384MB Cache |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| GPU |
| Max GPU Count | Up to 4 double-width GPU(s) |
| Supported GPU | View GPU Options |
| NVIDIANVIDIA A30 PCIe: RTX A6000, RTX 6000 ADA, L40S |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | PCIe |
| System Memory |
| Memory | View Memory Options |
| Slot Count: 8 DIMM slots |
| Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM |
| On-Board Devices |
| Chipset | System on Chip |
| Network Connectivity | Via AIOM |
| View AOC Options |
| View AIOM Options |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| USB | 2 USB 3.0 port(s) (rear) |
| Video | 1 VGA port(s) |
| System BIOS |
| BIOS Type | AMI 256MB SPI Flash |
| BIOS Features | SMBIOS 3.5 or later |
| UEFI 2.9 |
| ACPI 6.5 SMBIOS 3.6 or later UEFI 2.8 Plug and Play (PnP) USB Keyboard support |
| Management |
| Software | KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| IPMI 2.0 |
| Supermicro Update Manager (SUM) |
| Supermicro Server Manager (SSM) |
| Super Diagnostics Offline |
| Power configurations | ACPI Power Management |
| Power-on mode control for AC power loss recovery |
| Power button override mechanism, |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-HS201-R000NFP |
| Dimensions and Weight |
| Height | 3.5' (88.9 mm) |
| Width | 17.2' (437 mm) |
| Depth | 31.74' (806.2 mm) |
| Package | 9.96' (H) x 26.46' (W) x 43.31' (D) |
| Weight | Gross Weight: 75 lbs (34 kg) |
| Net Weight: 45 lbs (20.5 kg) |
| Available Color | Silver |
| Front Panel |
| LED | LAN1 activity |
| HDD activity |
| Power |
| System information |
| Buttons | UID button |
| Power On/Off |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| M.2 |
| Drive Bays / Storage |
| Drive Bays Configuration | View Drive Options |
| Default: Total 8 bay(s) 8 front hot-swap 2.5' NVMe*/SAS*/SATA* drive bay(s) |
| 8 front hot-swap 2.5' NVMe*/SAS*/SATA* drive bay(s) |
| (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) |
| M.2 | View M.2 Options |
| 2 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key 22110(default)/2280) |
| System Cooling |
| Fans | 6x 6cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud(s) |
| Power Supply |
| Dimension (WxHxL) | 73.5 x 40 x 265 mm |
| +12V | Max: 216A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 3.5A |
| AC Input | 2600W: 200-240Vac / 50-60Hz |
| 2600W: 200-240Vdc / 50-60Hz (for CQC only) |
| Output Type | Backplanes (gold finger) |
| Operating Environment |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
