| Motherboard (per Node) |
| Motherboard (per Node) | Super H12SSG-AN6 |
| Processor (per Node) |
| CPU | Socket SP3 |
| Supports CPU TDP up to 280W * |
| Single EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) |
| Cores | Up to 64 Cores |
| Chipset | System on Chip (SoC) |
| Note | * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization |
| System Memory (per Node) |
| Memory Capacity | 8 DIMM slots |
| Up to 2TB 3DS ECC DDR4-3200MH SDRAM |
| Memory Type | 3200MHz ECC DDR4 SDRAM |
| On-Board Devices (per Node) |
| Network | Flexible networking via AIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics & System Management | ASPEED AST2600 BMC |
| Input / Output (per Node) |
| SATA | SATA3 (6Gbps) via AMD EPYC |
| LAN | Flexible networking provided by AIOM |
| 1 RJ45 1GbE Dedicated IPMI management port |
| USB | 2 USB 3.0 ports (rear) |
| Video | 1 VGA Connector (rear) |
| Others | 1 COM port (header) |
| 1 TPM 2.0 (header) |
| System BIOS (per Node) |
| BIOS Type | AMI 256Mb SPI Flash ROM |
| Management (per Node) |
| Software | IPMI 2.0 |
| KVM with dedicated LAN |
| SuperDoctor® 5 |
| SSM , SPM , SUM |
| Watchdog |
| PC Health Monitoring |
| CPU | 4+1 Phase-switching voltage regulator |
| Monitors for CPU Cores, Chipset Voltages, Memory. |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 2U Rackmountable |
| Model | CSE-227GTS-R2K63P |
| Dimensions |
| Height | 3.47' (88mm) |
| Width | 17.6' (447mm) |
| Depth | 29.9' (760mm) |
| Available Colors | Black |
| Drive Bays / Storage (per Node) |
| Hot-swap | 2 front Hot-swap 2.5' U.2 NVMe Gen4 drive bays |
| Expansion Slots (per Node) |
| PCI-Express | 6 PCI-E Gen 4 x16 (4 internal, 2 external) slots |
| 1 PCI-E Gen 4 x8 AIOM networking slot |
| System Cooling |
| Fans | 4 Hot-swap heavy duty 80mm PWM fans |
| Power Supply |
| Power Supply | 2600W Redundant Power Supplies with PM Bus |
| Total Output Power and Input | 2600W with Input 200-240Vac |
| 2600W with Input 200-240Vdc (for CQC only) |
| Dimension (W x H x L) | 40 x 73.5 x 265 mm |
| +12V | Max: 216A / Min: 0A (200-240 Vac) |
| +12Vsb | Max: 4.5A / Min: 0A |
| Output Type | Gold Finger Connector |
| Certification (Pending) | Titanium Level |
| Operating Environment |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Product SKUs |

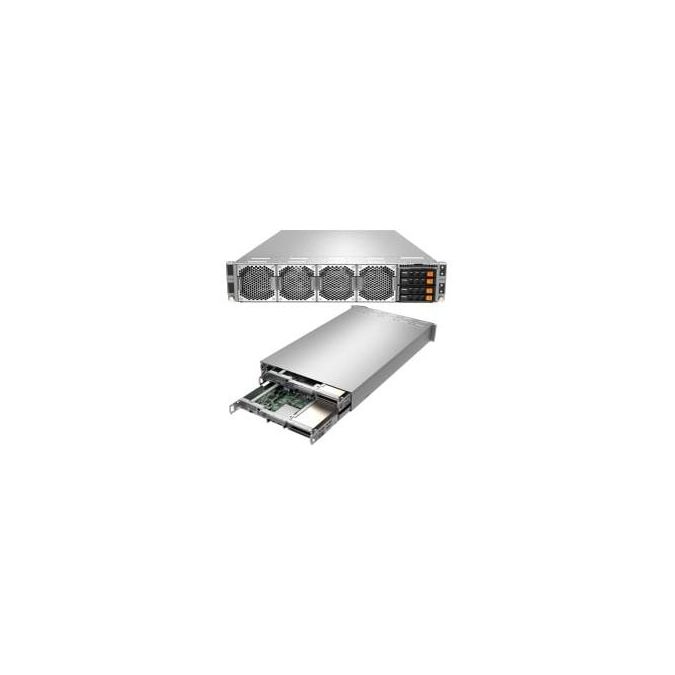

| Product SKUs | A+ Server 2114GT-DNR (Black) |
