| Motherboard |
| Motherboard | Super X12DGU |
| Processor |
| CPU | 3rd Gen Intel® Xeon® Scalable processors |
| Support CPU TDP 270W |
| Dual Socket P+ (LGA-4189) |
| Cores | Up to 40C/80T, Up to 60MB Cache |
| GPU |
| Supported GPU | HGX A100 4-GPU SXM4 Multi-GPU Board |
| CPU-GPU Interconnect | PCIe 4.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIANVIDIA A30® NVLink™ |
| System Memory |
| Memory | Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM |
| Memory Capacity: 32 DIMM slots |
| Up to 8TB: 32x 256 GB DRAM |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices |
| SATA | SATA3 (6Gbps), RAID 0/1/5/10 support |
| Chipset | Intel® C621A |
| Network Connectivity | 2x 10GbE BaseT with Intel® X710 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| Video | 1 VGA port(s) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | Watch Dog |
| NMI |
| KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SUM |
| SSM |
| SPM |
| OOB Management Package (SFT-OOB-LIC ) |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 7 +1 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |

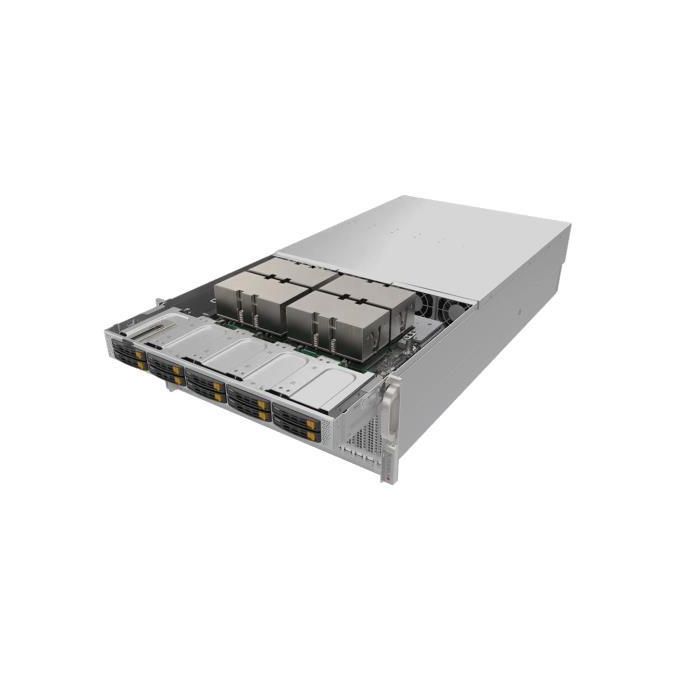

| Form Factor | 4U Rackmount |
| Model | CSE-458GTS-R3K06P |
| Dimensions and Weight |
| Height | 7' (175.6mm) |
| Width | 17.67' (449mm) |
| Depth | 32.79' (833mm) |
| Package | 14.57' (H) x 27.55' (W) x 49.6' (D) |
| Weight | Net Weight: 105 lbs (48 kg) |
| Gross Weight: 140 lbs (64 kg) |
| Available Color | Black Front & Silver Body |
| Front Panel |
| Buttons | Power On/Off button |
| System Reset button |
| LEDs | Network activity LEDs |
| Hard drive activity LED |
| Power status LED |
| System Overheat & Power Fail LED |
| Drive Bays / Storage |
| Hot-swap | 10x 2.5' hot-swap NVMe/SATA drive bays (10x 2.5' NVMe hybrid) |
| M.2 | 1 M.2 NVMe OR 1 M.2 SATA3 |
| System Cooling |
| Fans | 5 removable heavy-duty Fan(s) |
| Power Supply |
| Output Type | Backplanes (connector) |
| Certification | Titanium Level |
| AC Input | 3000W: |
| DC Output | 3000W |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Product SKUs |
| Product SKUs | SYS-420GU-TNXR |
| Expansion Slots |
| PCI-Express (PCIe) | 6 PCIe 4.0 x16 LP slot(s) |
