| Product SKUs |

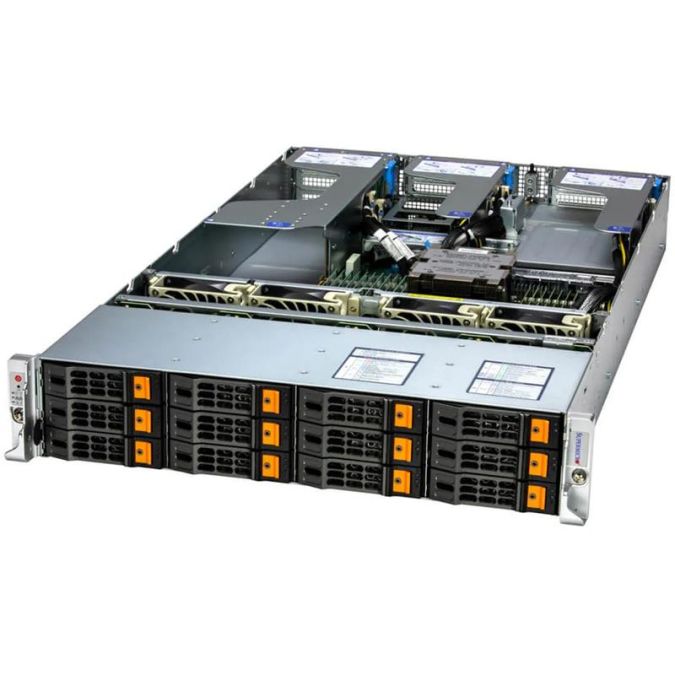

| Product SKUs | AS -2015HS-TNR |
| Motherboard |
| Motherboard | Super H13SSH |
| Processor |
| CPU | Single Socket SP5 |
| 4th Generation AMD EPYC™ 9004 Series Processor |
| Support CPU TDP up to 360W * |
| Cores | Up to 96C/192T |
| Note | *Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization |
| System Memory |
| Memory | Memory Capacity: 24 DIMM slots |
| Up to 3TB: DDR5-4800MHz (12 DIMM slots, 1DPC) |
| Up to 6TB: DDR5-4000MHz/ 3600MHz (24 DIMM slots, 2DPC) |
| Memory Type: 4800MHz(1DPC) or 4000/3600(2DPC)MHz ECC DDR5 RDIMM |
| Note | For optimal performance AMD recommends full memory population |
| Memory Voltage | 1.1 V |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | System on Chip |
| Network Connectivity | Via AIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| LAN | 1 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 port(s) (2 rear) |
| Video | 1 VGA port(s) |
| System BIOS |
| BIOS Type | AMI 256MB SPI Flash |
| BIOS Features | USB Keyboard support |
| Plug and Play (PnP) |
| ACPI 6.4 |
| SMBIOS 3.5 or later |
| UEFI 2.8 |
| Management |
| Software | Watch Dog |
| SuperDoctor® 5 |
| SUM |
| SSM |
| SPM |
| IPMIView for Linux/ Windows |
| IPMICFG |
| Power Configurations | ACPI Power Management |
| Power-on mode control for AC power loss recovery |
| PC Health Monitoring |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 2U |
| Model | CSE-HS829-R1K24P-A |
| Dimensions and Weight |
| Height | 3.5' (88.9mm) |
| Width | 17.2' (437mm) |
| Depth | 31.6' (803mm) |
| Package | 10.4' (H) x 23.8' (W) x 43.6' (D) |
| Weight | Gross Weight: 69 lbs (31.3 kg) |
| Net Weight: 39 lbs (17.7 kg) |
| Available Color | Black front & sliver body |
| Front Panel |
| Buttons | UID button |
| Power On/Off |
| LEDs | HDD activity |
| Power status |
| LAN1 activity |
| System information |
| Expansion Slots |
| PCI-Express (PCIe) | 4 (Optional) PCIe 5.0 x16 FHFL slot(s) |
| 8 (Optional) PCIe 5.0 x8 FHFL slot(s) |
| Drive Bays / Storage |
| Hot-swap | 12x 3.5' hot-swap NVMe/SATA/SAS drive bays |
| M.2 | 2x NVMe (PCIe Gen4, Boot drive only) |
| M-Key, 22110 (Default) |
| System Cooling |
| Fans | 4x 8cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud(s) |
| Power Supply |
| Dimension (W x H x L) | 73.5 x 40 x 265 mm |
| AC Input | 800W: 100-127Vac / 9.8A-7A / 50-60Hz |
| 1200W: 200-240Vac / 7.5A-6A / 50-60Hz |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) |
| Max: 100A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 2.1A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Note | Operating Temperature based on configurations |
