| Motherboard |
| Motherboard | Super X12DHM-6 |
| Processor |
| CPU | 3rd Gen Intel® Xeon® Scalable processors |
| Support CPU TDP 270W |
| Dual Socket P+ (LGA-4189) |
| System Memory |
| Memory | Intel® Optane™ persistent memory 200 series |
| Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM |
| Memory Capacity: 32 DIMM slots |
| Up to 8TB: 32x 256 GB DRAM |
| Up to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices |
| Chipset | Intel® C621A |
| Network Connectivity | 2x 1GbE BaseT with Intel® i350-AM2 (optional) |
| 4x 1GbE SFP or 2x 10GbE BaseT with Intel® X550-AT2 (optional) |
| 2x 10GbE SFP+ with Intel® X710-BM2 (optional) |
| 4x 10GbE SFP+ with Intel® XL710-BM1 (optional) |
| 4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional) |
| 2x 25GbE SFP28 with Broadcom® BCM57414 (optional) |
| 4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional) |
| 2x 100GbE QSFP28 with Broadcom® BCM57508 (optional) |
| 4x 1GbE BaseT with Intel® i350-AM4 (optional) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |

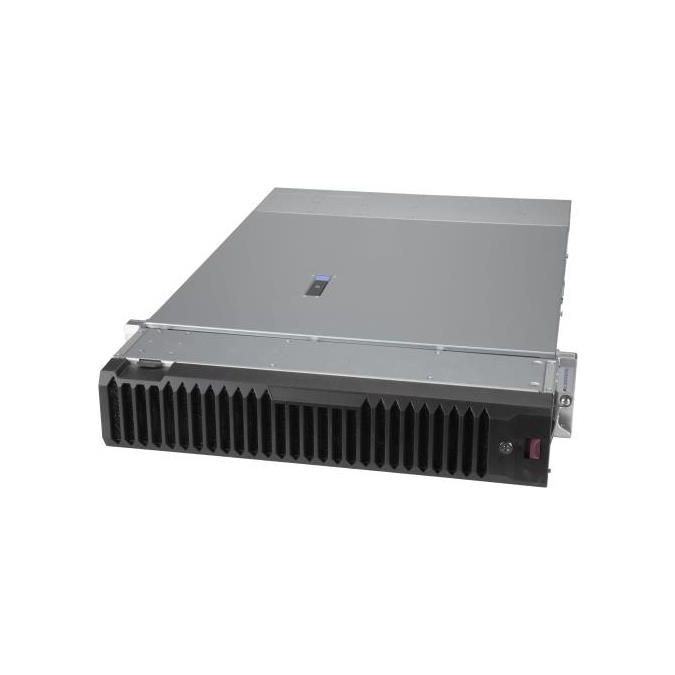

| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-HE211-R000NFP |
| Note | Standard sliding rail kit: Post to Post 19.1' ~ 26.4“ |
| 2U Front Bezel |
| Replaceable UL900-2004 certified air filter |
| Dimensions and Weight |
| Height | 3.5' (88.9mm) |
| Width | 17.2' (436.88mm) |
| Depth | 22.6' (574mm) |
| Package | 9.7' (H) x 23.5' (W) x 36.9' (D) |
| Weight | Net Weight: 34.4 lbs (15.6 kg) |
| Gross Weight: 47.4 lbs (21.5 kg) |
| Available Color | Silver |
| Front Panel |
| Buttons | Power On/Off |
| LEDs | LAN1 activity |
| System information |
| LAN2 activity |
| Drive Bays / Storage |
| Hot-swap | 6x 2.5' hot-swap NVMe/SATA drive bays (6x 2.5' NVMe hybrid) |
| M.2 | M-Key, 2280/22110 |
| 2 M.2 NVMe OR 2 M.2 SATA3 |
| System Cooling |
| Fans | 6 Counter-rotating, Hot-swappable 60x60x56mm Fan(s) |
| Power Supply |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm |
| AC Input | 1000W: 100-127Vac / 50-60Hz |
| 1800W: 200-220Vac / 50-60Hz |
| 1980W: 220-230Vac / 50-60Hz |
| 2000W: 230-240Vac / 50-60Hz |
| 2000W: 220-240Vac / 50-60Hz |
| +12V | Max: 83A (100Vac-127Vac) |
| Max: 150A (200Vac-220Vac) |
| Max: 165A (220Vac-230Vac) |
| Max: 166A (220Vac-240Vac) |
| Max: 166A (230Vac-240Vac) |
| 12V SB | Max: 3.5A / Min: 0A |
| Certification | Titanium Level |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 5°C ~ 35°C (41°F ~ 95°F) |
| Note | Operating Relative Humidity: 5% to 85% with excursion of |
| Operating Temperature: Continuous: 5°C ~ 40°C (41°F ~ 104°F), Short term: -5°C ~ 55°C (23°F ~ 131°F) |
| Product SKUs |
| Product SKUs | SYS-220HE-FTNR-NEBS |
| Input / Output |
| LAN | 1 RJ45 Dedicated BMC LAN port |
| USB | 2 USB 2.0 port(s) (2 front) |
| Video | 1 VGA port(s) |
| System BIOS |
| BIOS Type | AMI 256MB SPI Flash |
| Management |
| Software | Watch Dog |
| NMI |
| KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SUM |
| SSM |
| SPM |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Expansion Slots |
| PCI-Express (PCIe) | 3 PCIe 4.0 x16 or x8 FHFL slot(s) |
| 1 PCIe 4.0 x8 FHFL slot(s) |
| 2 PCIe 4.0 x8FHFL slot(s) |
| 2 PCIe 4.0 x8 FHHL slot(s) |
| Note | If Slot 1 is configured as PCIe x16, Slot 2 will be disabled, If Slot 3 is configured as PCIe x16, Slot 4 will be disabled, If Slot 5 is configured as PCIe x16, Slot 6 will be disabled, (Optional) If Slot 7 is configured as PCIe x16, Slot 8 will be disabled. |
