| Product SKUs |

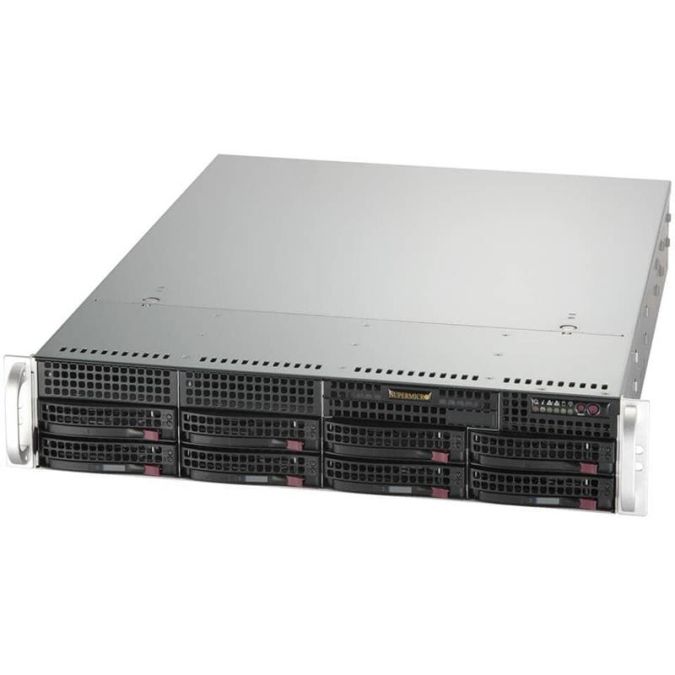

| Product SKUs | AS -2015A-TR |
| Motherboard |
| Motherboard | Super H13SAE-MF |
| Processor |
| CPU | Single processor(s) |
| Core Count | Up to 16C/32T |
| Note | Supports 60W - 170W TDP CPUs (Air Cooled) |
| GPU |
| Max GPU Count | Up to 2 double-width GPU(s) |
| System Memory |
| Memory | View Memory Options |
| Slot Count: 4 DIMM slots |
| Max Memory (2DPC): Up to 128GB 5200MT/s ECC DDR5 UDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
| SATA | SATA (6Gbps) |
| Chipset | AMD B650 |
| Network Connectivity | View AOC Options |
| 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI) |
| 2 RJ45 1GbE with Intel® I210-AT |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| USB | 3 Type-A port(s) (Rear) |
| 2 Type-C port(s) (Rear) |
| 1 Type-C port(s) (Rear) |
| Video | 1 VGA port(s) |
| 1 HDMI 2.0 port(s) |
| 1 DisplayPort 1.4 port(s) |
| Audio | Rear Audio |
| TPM | 1 TPM header |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash |
| Management |
| Software | KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| IPMI 2.0 |
| Supermicro Update Manager (SUM) |
| Supermicro Server Manager (SSM) |
| Super Diagnostics Offline |
| Power configurations | ACPI 6.0 |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| PC Health Monitoring |
| FAN | Status monitor for speed control |
| Voltage | +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM |
| Other Features | 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor |
| Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment, PECI |
| Chassis |
| Form Factor | 2U |
| Model | CSE-825TQC-R802LPB |
| Dimensions and Weight |
| Height | 3.5' (89 mm) |
| Width | 17.2' (437 mm) |
| Depth | 25.5' (647 mm) |
| Package | 11.4' (H) x 26.7' (W) x 34.5' (D) |
| Weight | Gross Weight: 52 lbs (23.59 kg) |
| Net Weight: 37 lbs (16.78 kg) |
| Available Color | Black |
| Front Panel |
| LED | Power status LED |
| HDD activity LED |
| System Information LED |
| Power Fail LED |
| Network Activity LEDs |
| Buttons | Power On/Off button |
| System Reset button |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| Drive Bays / Storage |
| Drive Bays Configuration | View Drive Options |
| Default: Total 8 bay(s) 8 front hot-swap 3.5' SAS/SATA drive bay(s) |
| 8 front hot-swap 3.5' SAS/SATA drive bay(s) |
| M.2 | View M.2 Options |
| 2 M.2 PCIe 5.0 x4 NVMe slot(s) (M-key 2280/22110) |
| System Cooling |
| Fans | 3x 80mm Fan(s) |
| Power Supply |
| Dimension (WxHxL) | 76 x 40 x 336 mm |
| +12V | Max: 66A / Min: 0A (100Vac-240Vac) |
| Max: 66A / Min: 0A (200Vdc-240Vdc) |
| 5V SB | Max: 4A / Min: 0A |
| AC Input | 800W: 100-240Vac / 50-60Hz |
| 800W: 200-240Vdc / 50-60Hz |
| Output Type | Backplanes (gold finger) |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
