| Main Specifications |

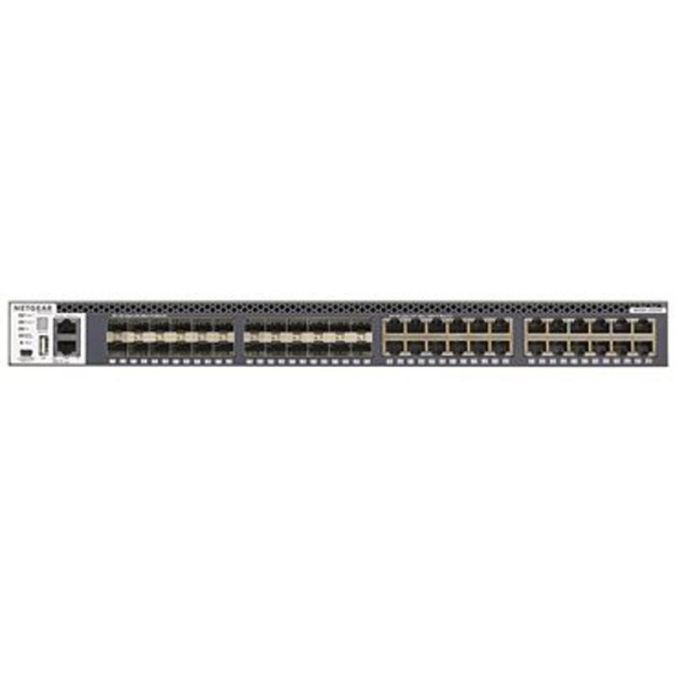

| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Dimensions (WxDxH) | Width: 17.32, Height: 1.73, Depth: 13.58 inches |
| Weight | 9.12 lb (4.14 kg) |
| Capacity | Virtual interfaces (VLANs): 4000 |
| Networking |
| Performance | Switching capacity: 960 Gbps, Throughput: 714 Mpps |
| Routing Protocol | OSPF, RIP, IGMPv2, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, MLDv2 |
| Remote Management Protocol | SNMP, Telnet, HTTPS, SSH, CLI |
| Max Units In A Stack | 8 |
| Ports | 24 x 10/100/1000/10000 + 24 x 10 Gigabit SFP+ |
| Miscellaneous |
| Authentication Method | RADIUS, TACACS+ |
| Compliant Standards | IEEE 802.3ad (LACP), IEEE 802.3az |
| Features | ARP support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, STP Root Guard, IPv4 support, LACP support, DHCP relay, Remote Switch Port Analyzer (RSPAN), Per-VLAN Rapid Spanning Tree (PVRST), dynamic ARP protection, IP source guard, Bridge protocol data unit (BPDU), LISP Across Subnet Mode (ASM), Source-Specific Multicast (SSM) |
| Processor |
| Embedded Processor | 1: 800 MHz |
| System Memory |
| Memory Installed | RAM: 1 GB, Flash Memory: 256 MB |
| Expansion / Connectivity |
| Expansion / Connectivity | 24 x 10GBase-T RJ-45, 24 x 10GBase-X SFP+, 1 x management (Gigabit LAN) RJ-45, 1 x serial (RS-232) RJ-45, 1 x console (mini-USB), 1 x USB Type A |
| Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V |
