| Main Specifications |

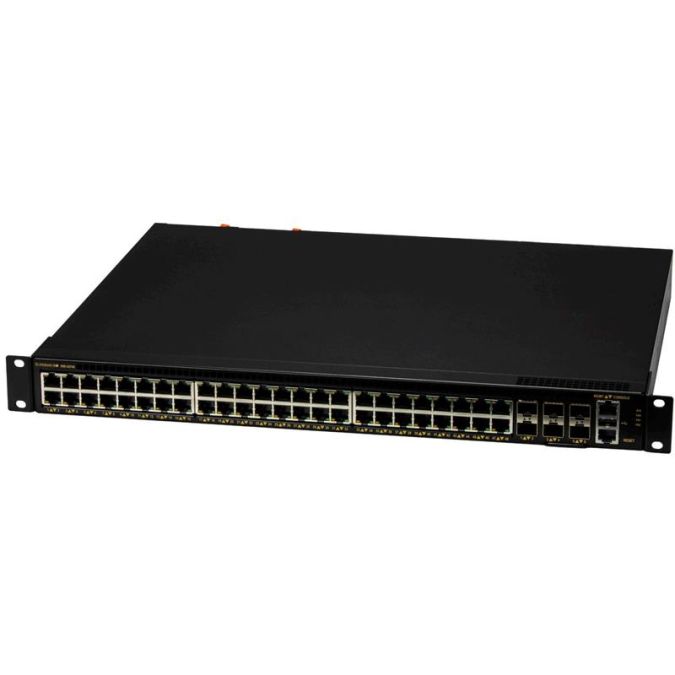

| Device Type | 25G Ethernet Switch |
| Interface Supported | 10M, 100M, 1G, 10G, 25G |
| Form Factor | 1U form factor |
| Type | Reverse Airflow (back to front) |
| Dimensions (WxDxH) | 445 x 356 x 43.5 mm (17.5 x 14 x 1.7 inches) |
| Weight | 8 kg (with 2 PSUs) |
| Performance |
| Switching Capacity | 396Gbps |
| System Cooling |
| Fans/Air Shroud | Hot Swappable 1+1 redundant Fan Modules |
| Power Supply |
| Power Supply | 150W Maximum Power (with Pluggable Optic), Hot-pluggable Redundant power supply |
| Networking |
| Layer Support | Layer 2: VLAN, VLAN Trunking, MAC Aging, LLDP, LACP, 802.1w Rapid Spanning Tree, 802.1s Multiple Spanning Tree Protocol, 4096 VLANs, MLAG, Jumbo Frames, IGMP v1/v2/v3 snooping, Storm Control |
| Layer 3: Static Routing, RIPv2, OSPF, BGP, Multipath Routing (ECMP), VRRP |
| Management Features | SNMP MIBs, Syslog, Critical Resource Monitoring, Mirroring, TACACS+, Sensor transceiver monitoring |
| Networking Features | RS-232 Serial Console Port & GUI, USB Port, SNMP v1, v2, v3, Management over IPv6, Telnet and SSHv2, Syslog, Industry Standard CLI & GUI, System Logging, Environment monitoring |
| Controller Type | Embedded X86 Linux-based controller |
| QoS | 8 priority queues per port, Strict priority queueing, 802.1p based classification, DSCP based classification and remarking, Egress shaping / Weighted round robin (WRR), Explicit Congestion Notification (ECN) marking, 802.1Qbb Per-Priority Flow Control (PFC), 802.1Qaz Enhanced Transmission Selection (ETS), Data Center Bridging Extensions (DCBX) |
| ACL | IP ACL permit/deny, MAC ACLs, Dynamic ACL upgrade, ACL Statistics, DHCP Relay / Snooping, Rate limiting |
| Utilities | NTP, ZTP |
| Safety and Compliance |
| Safety | UL 60950-1, EN 60950-1, IEC 60950-1, CAN/CSA-C22.2 No. 60950, AS/NZS 60950-1GB4943, GB4943, EN 60825-1 |
| Electromagnetic Compatibility | 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A, BSMI CMS 13438 Class A, EN50082-1, EN61000-6-1, EN55024, CISPR24, EN300386, KN 61000-4 series |
| Software / System Requirements |
| OS Supports | SMIS OS (pre-loaded) |
| Expansion / Connectivity |
| Expansion / Connectivity | Forty-eight 1Gbps RJ45 Ethernet ports |
| Six 25G/10Gbps SFP28/SFP+ uplinks |
| Miscellaneous |
| Compliant Standards | RoHS Compliant |
