| Main Specifications |

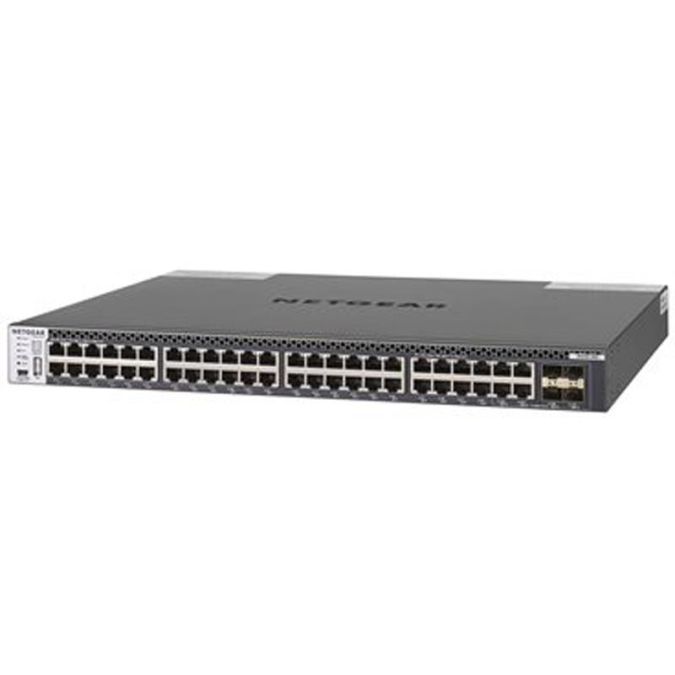

| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Dimensions (WxDxH) | Width 17.3 x Depth 13.6 x Height 1.7 in |
| Weight | 14.44 lbs |
| Processor |
| Host Processor | 1: 800 MHz |
| Memory |
| RAM | 1GB |
| Flash Memory | 256 MB |
| Networking |
| Ports | 48 x 10 Gigabit Ethernet + 4 x shared 10 Gigabit SFP+ |
| Performance | Switching capacity: 960 Gbps , Throughput: 714 Mpps , 10 Gbps fiber latency (64-byte packets): 1.508 µs , 10 Gbps fiber latency (512-byte packets): 1.516 µs , 10 Gbps fiber latency (1024-byte packets): 1.516 µs , 10 Gbps fiber latency (1518-byte packets): 1.523 µs , 10 Gbps copper latency (64-byte packets): 2.409 µs , 10 Gbps copper latency (512-byte packets): 2.425 µs , 10 Gbps copper latency (1024-byte packets): 2.43 µs , 10 Gbps copper latency (1518-byte packets): 2.432 µs , 1 Gbps fiber latency (64-byte packets): 2.285 µs , 1 Gbps fiber latency (512-byte packets): 2.39 µs , 1 Gbps fiber latency (1024-byte packets): 2.426 µs , 1 Gbps fiber latency (1518-byte packets): 2.379 µs , 1 Gbps copper latency (64-byte packets): 2.702 µs , 1 Gbps copper latency (512-byte packets): 2.714 µs , 1 Gbps copper latency (1024-byte packets): 2.73 µs , 1 Gbps copper latency (1518-byte packets): 2.709 µs |
| MAC Address Table Size | 128K |
| Jumbo Frame Support | 12KB |
| Routing Protocol | OSPF, RIP, IGMPv2, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, MLDv2 |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTPS, SSH, CLI |
| Expansion / Connectivity |
| Expansion / Connectivity | 48 x 10GBase-T RJ-45 , 4 x 10GBase-X SFP+ , 1 x management (Gigabit LAN) RJ-45 , 1 x serial (RS-232) RJ-45 , 1 x console (mini-USB) , 1 x USB Type A |
| Power |
| Power Device | Internal power supply |
| Installed Qty | 1 (installed) / 2 (max) |
| Power | 2500 Watt |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 237.2 Watt |
| Miscellaneous |
| Compliant Standards | CISPR 22 Class A, EN55024, EN50082-1, FCC Part 15 A, C-Tick Class A, VCCI Class A, EN 55022 Class A |
| Features | ARP support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, STP Root Guard, IPv4 support, LACP support, DHCP relay, Remote Switch Port Analyzer (RSPAN), Per-VLAN Rapid Spanning Tree (PVRST), dynamic ARP protection, IP source guard, Bridge protocol data unit (BPDU), LISP Across Subnet Mode (ASM), Source-Specific Multicast (SSM) |
| Environmental |
| Operating Environment | Min Operating Temperature: 32 °F |
| Max Storage Temperature: 158 °F |
| Max Operating Temperature: 122 °F |
| Humidity Range Operating: 0 - 90% (non-condensing) |
| Min Storage Temperature: -4 °F |
| Humidity Range Storage: 0 - 95% (non-condensing) |
