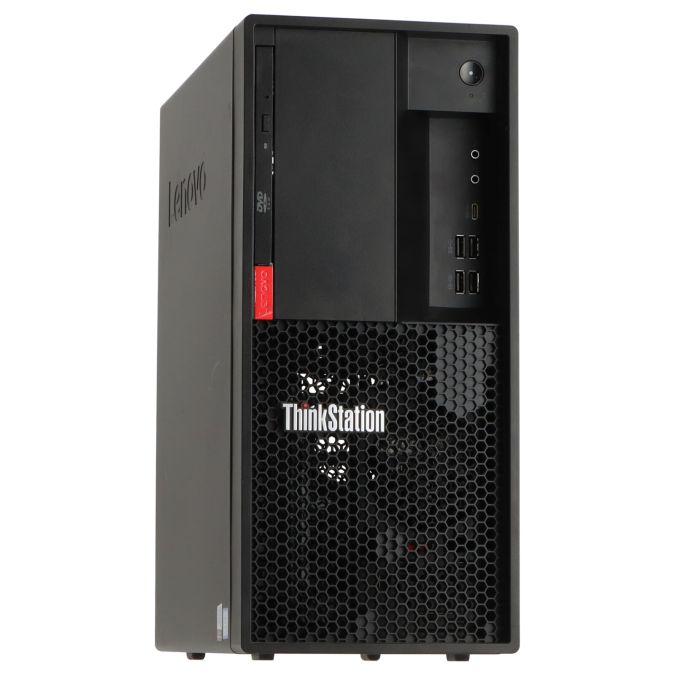

Lenovo ThinkStation P330 Workstation Xeon E-2224 4-Core 3.4GHz 16GB 512GB M.2 SSD DVD Win 11Pro
| Applicability | Workstation |
|---|---|
| Manufacturer | Lenovo |
| SKU | 10010322 |
| Product Type | Workstation |
Lenovo ThinkStation P330 Workstation Xeon E-2224 4-Core 3.4GHz 16GB 512GB M.2 SSD DVD Win 11Pro is an enterprise hardware item from Lenovo, suitable for professional workstation and CAD/compute environments. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Lenovo
- SKU: 10010322
- Category: Workstations / Lenovo Workstations / ThinkStation P330
- Stock status: InStock
- Corresponding P/Ns: Lenovo ThinkStation P330 Workstation 2nd Gen
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Number of CPUs | 1 |
| Number of cores per CPU | 4 |
| Number of CPU sockets | 1 |
| Processor | Intel Xeon |
| Processor type | E-2224 |
| Processor clock (MHz) | 3400 |
| Working memory (GB) | 16 |
| Memory type | DDR4 RAM |
| Graphics card | without graphics card |
| Sound | Yes |
| Intel Smart Cache (MB) | 8 |
| Intel QPI Speed (GT/s) | 8 |
| Number of power supply units | 1 |
| Power per power supply unit (watts) | 250 |
| Data carrier | |
| 512 GB M.2 SSD | 1 |
| Total capacity (GB) | 512 |
| max. hard discs | 2 |
| Other drives | |
| DVD-ROM | 1 |
| PCI devices onboard | |
| Device_1 | Gigabit LAN |
| Device_2 | S-ATA RAID Controller |
| Connections | |
| USB | 2 |
| USB 3.1 Gen1 | 4 |
| USB 3.1 Gen2 | 2 |
| USB 3.1 Type C | 1 |
| USB 3.2 Gen1 Type C | 1 |
| Serial port (DB9) | 1 |
| Microphone | 1 |
| Audio output | 2 |
| Network (RJ-45) | 1 |
| DisplayPort | 2 |
| M.2 | 2 |
| Expansion slots | |
| M.2 | 2 |
| M.2 2230 | 1 |
| PCIe x1 | 1 |
| PCIe x16 | 2 |
| Operating system | |
| Windows 11 Pro | pre-installed, activated, ready for use |
| Windows 10 Pro | Downgrade possible, please contact us |
| Note | |
| Special feature | with optical signs of wear (scratches) |
| Special feature 2 | A graphics card is required for operation. |
| Optical defect | Paintwork partially damaged, may show scratches and signs of use. |
Included in delivery: Item as described incl. 1x 2.5' hard drive carrier incl. 1x 3.5' hard drive carrier incl. Power cable incl. Windows 11 Pro license w/o manual
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
