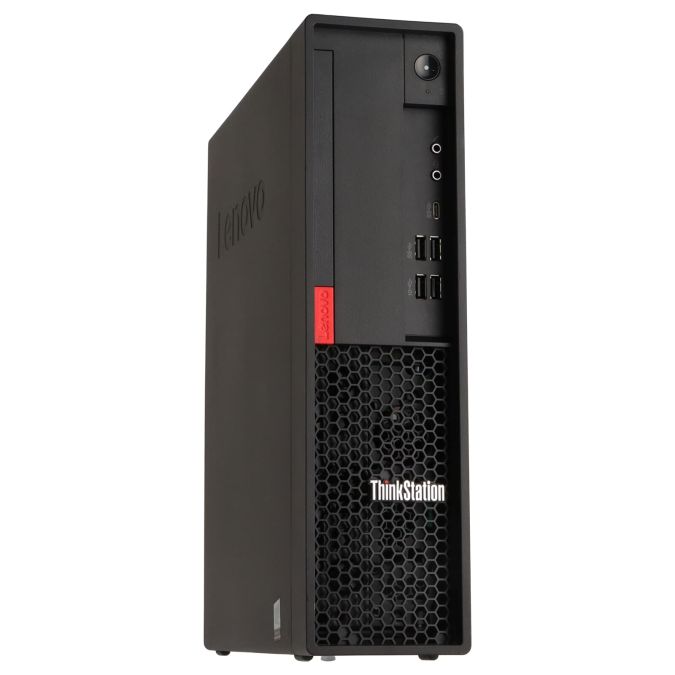

Lenovo ThinkStation P330 SFF Workstation CTO LGA 1151 incl. heatsink 2x SATA 260W
| Applicability | Workstation |
|---|---|
| Manufacturer | Lenovo |
| SKU | 10010237 |
| Product Type | Workstation |
Lenovo ThinkStation P330 SFF Workstation CTO LGA 1151 incl. heatsink 2x SATA 260W is an enterprise hardware item from Lenovo, suitable for professional workstation and CAD/compute environments. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Lenovo
- SKU: 10010237
- Category: Workstations / Lenovo Workstations / ThinkStation P330
- Stock status: InStock
- Corresponding P/Ns: Lenovo Thinkstation P330 SFF Lenovo ThinkStation P330 SFF 2nd Gen 30D2 P330 SSF
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Number of CPUs | 0 |
| CPU Socket | FCLGA1151 |
| Number of CPU sockets | 1 |
| Processor | Intel Xeon |
| Number of DIMM slots | 4 |
| Memory type | DDR4 RAM |
| Graphics card | without graphics card |
| Sound | Yes |
| Number of power supply units | 1 |
| Power per power supply unit (watts) | 260 |
| Data carrier | |
| Hard disc type | 1x SATA 3,5' + 1x SATA 2,5' + 1x M.2 2280 NVME |
| max. hard discs | 3 |
| PCI devices onboard | |
| Device_1 | Gigabit LAN |
| Device_2 | S-ATA RAID Controller |
| Connections | |
| USB | 2 |
| USB 3.1 Gen1 | 4 |
| USB 3.1 Gen2 | 2 |
| USB 3.1 Type C | 1 |
| Microphone | 1 |
| Audio output | 1 |
| Combined audio connection (headphones + microphone) | 1 |
| Network (RJ-45) | 1 |
| DisplayPort | 3 |
| Expansion slots | |
| M.2 WLAN | 1 |
| M.2 NVMe | 1 |
| PCIe 3.0 x16 @ x4 Low Profile | 1 |
| PCIe 3.0 x16 Low Profile | 1 |
| PCIe 3.0 x1 Low Profile | 1 |
| Operating system | |
| Windows 11 Pro | Digital Product Key |
| Note | |
| Special feature 2 | A graphics card is required for operation. |
Included in delivery: Item as described incl. Hard disk frame incl. Heatsink incl. Power cable incl. Windows 11 Pro license w/o manual
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
