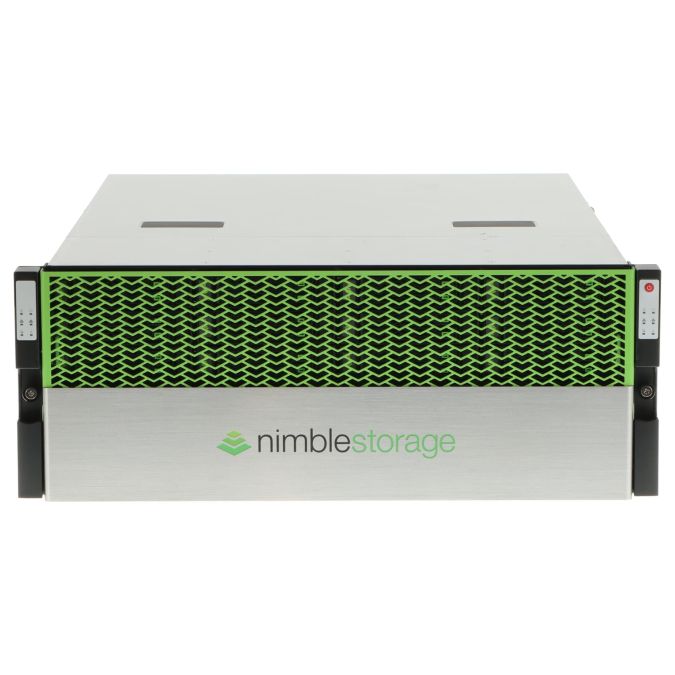

HPE Nimble AF1000 All-Flash SAN Storage FC 16Gbps 24x 480GB 24x 240GB SSD 17.2TB - AF1000-2F-17T Q8B40A
| MPN | AF1000 |
|---|---|
| Applicability | Storage |
| Manufacturer | HPE |
| SKU | 10010381 |
| Product Type | SAN |
HPE Nimble AF1000 All-Flash SAN Storage FC 16Gbps 24x 480GB 24x 240GB SSD 17.2TB - AF1000-2F-17T Q8B40A is an enterprise hardware item from HPE, suitable for storage, backup and data-center expansion projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: HPE
- SKU: 10010381
- Category: Storage / Storage SAN / FC
- Stock status: InStock
- Product family: HP Local I/O SUV Diagnostic cable 409496-001| Nimble Storage AF1000 2x16Gb FC 24x240GB Flash Array Q2Q36A| Nimble Storage AF1000 2x16Gb FC 24x480GB Flash Array Q2Q39A
- Corresponding P/Ns: AF1000 AF1000-2F-17T AGIGA8801-800CCA AOM-S3008-L8-SB LPE16002 MZ-7LM240N MZ-7LM480N NMB-550-0002-001 PM863a PWS-1K23A-1R-NS021 Q8B40A RSC-R2US-3E8R X10DRS-4U-NS021
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | SAN Storage |
| Form factor | 19 inch |
| Hard disc type | SAS, SSD |
| Number of power supply units | 2 |
| Number of installed hard drives | 48 |
| max. hard discs | 48 |
| RAID level | Triple+ Parity RAID |
| Hard disc size in GB | 480, 240 |
| Total capacity (gross) in TB | 17,280 |
| Processor | Intel Xeon E5-2603 v3 |
| Total cache memory (GB) | 64 |
| Controller cache memory (GB) | 32 |
| Total data cache memory (GB) | 16 |
| Controller Data Cache Memory (GB) | 8 |
| Data transfer rate (Ethernet) | 1 Gbps |
| Data transfer rate (FC) | 16 Gbps, 8 Gbps |
| Data transfer rate (SAS) | 12 Gbps, 6 Gbps |
| Storage media | |
| 240 GB SATA 6G SSD | 24 |
| 480 GB SSD SATA | 24 |
| Controller | |
| Nimble Controller w/ 6C 1,60Ghz w/ 2Port 16Gb HBA | 2 |
| Connections | |
| Extension - SAS - SFF-8644 | 4 |
| Network - Ethernet - RJ-45 | 4 |
| Network - FC - SFP+ | 4 |
Included in delivery: Item as described incl. 4x 16Gb GBICs incl. Front panel incl. Hard disks incl. Power cable incl. Rack mounting rails w/o Mounting material w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
