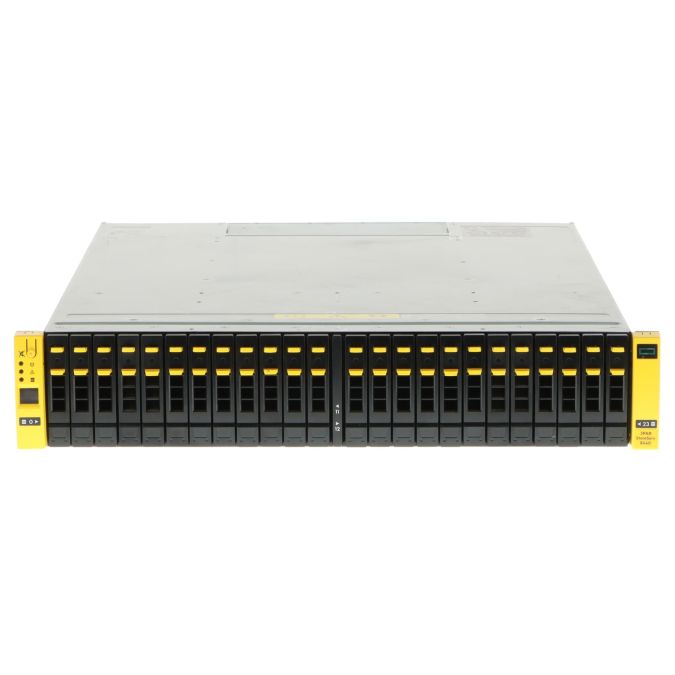

HPE 3PAR StoreServ 8440 Upgrade Node Pair - H6Z08A
| MPN | 683240-001 |
|---|---|
| Applicability | Storage |
| Manufacturer | HPE |
| SKU | 10010395 |
| Product Type | SAN |
HPE 3PAR StoreServ 8440 Upgrade Node Pair - H6Z08A is an enterprise hardware item from HPE, suitable for storage, backup and data-center expansion projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: HPE
- SKU: 10010395
- Category: Storage / Storage SAN / FC
- Stock status: InStock
- Product family: HPE 3PAR StoreServ 8000 Disk Enclosure
- Corresponding P/Ns: 683240-001 727386-001 H6Y97-63001 H6Z08A P00521-001
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | SAN Storage |
| Hard disc type | SAS |
| Number of power supply units | 2 |
| Number of installed hard drives | 0 |
| max. hard discs | 24 |
| RAID level | 0, 1, 5, 6 |
| Processor | Intel Xeon E5-2470 v2 |
| Total cache memory (GB) | 128 |
| Controller cache memory (GB) | 64 |
| Total data cache memory (GB) | 64 |
| Controller Data Cache Memory (GB) | 32 |
| Total flash memory (GB) | 480 |
| Controller flash memory (GB) | 240 |
| Data transfer rate (Ethernet) | 1 Gbps |
| Data transfer rate (FC) | 16 Gbps, 8 Gbps, 4 Gbps |
| Data transfer rate (SAS) | 12 Gbps, 6 Gbps |
| Controller | |
| 3PAR StoreServ 8000 Node w/ 10C 2.4Ghz w/o HBA | 4 |
| Connections | |
| Extension - PCIe x8 - Interconnection Port | 4 |
| Extension - SAS - SFF-8644 | 4 |
| Network - FC - SFP+ | 4 |
| Management - Ethernet - RJ-45 | 4 |
| Management - RS-232 - RJ-45 | 2 |
Included in delivery: Item as described incl. 4x 16Gb GBICs incl. Cache battery incl. Power cable w/o 4x PCI-E Node Link cable w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
| MPN | 683240-001 |
|---|---|
| Applicability | Storage |
| Manufacturer | HPE |
| SKU | 10010395 |
| Product Type | SAN |
