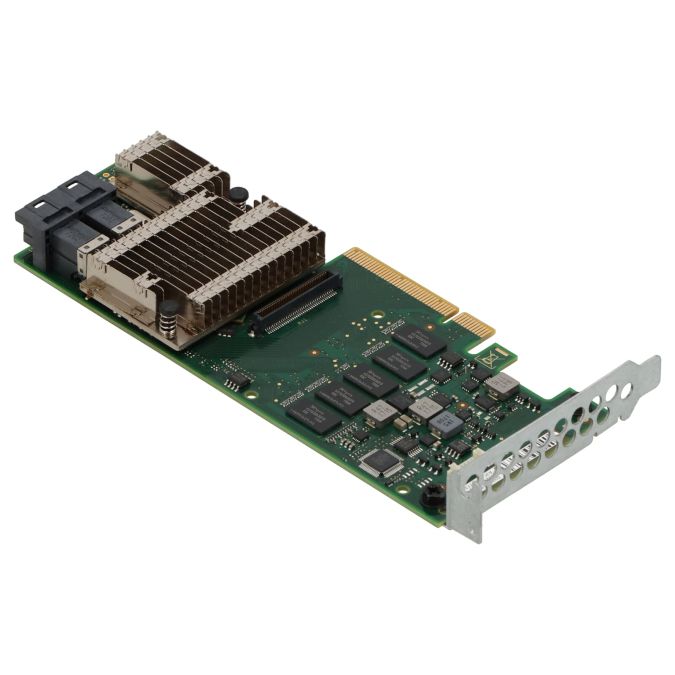

Fujitsu PRAID EP400i RAID Controller 8Port 1GB PCI-e LP - D3216-A23 GS 1
| MPN | A3C40203773 |
|---|---|
| Applicability | Workstation |
| Manufacturer | Fujitsu |
| SKU | 50022859 |
| Product Type | Workstation |
Fujitsu PRAID EP400i RAID Controller 8Port 1GB PCI-e LP - D3216-A23 GS 1 is an enterprise hardware item from Fujitsu, suitable for repair, upgrade and spare-part replacement projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Fujitsu
- SKU: 50022859
- Category: Parts / Controller / Raid Controller
- Stock status: InStock
- Product family: FUJITSU CELSIUS C740 BROADWELL Workstation| FUJITSU CELSIUS C780 PWR Workstation| FUJITSU CELSIUS C780 Workstation| FUJITSU CELSIUS M7010 PWR Workstation| FUJITSU CELSIUS M7010 Workstation| FUJITSU CELSIUS M7010X PWR Workstation| FUJITSU CELSIUS M740B-L Workstation| FUJITSU CELSIUS M770 PWR Workstation| FUJITSU CELSIUS M770 Workstation| FUJITSU CELSIUS R940 D3358 Workstation| FUJITSU CELSIUS R970 PWR Workstation| FUJITSU CELSIUS R970 Workstation| FUJITSU CELSIUS R970B PWR Workstation| FUJITSU CELSIUS R970B Workstation| FUJITSU PRIMERGY CX2550 M4| FUJITSU PRIMERGY CX2550 M5| FUJITSU PRIMERGY CX2560 M4| FUJITSU PRIMERGY CX2560 M5| FUJITSU PRIMERGY CX2570 M4| FUJITSU PRIMERGY RX1330 M4| FUJITSU PRIMERGY RX2520 M4| FUJITSU PRIMERGY RX2520 M5| FUJITSU PRIMERGY RX2530 M4| FUJITSU PRIMERGY RX2530 M5| FUJITSU PRIMERGY RX2540 M4| FUJITSU PRIMERGY RX2540 M5| FUJITSU PRIMERGY RX4770 M4| FUJITSU PRIMERGY RX4770 M5| FUJITSU PRIMERGY TX1320 M4| FUJITSU PRIMERGY TX1330 M4| FUJITSU PRIMERGY TX2550 M4| FUJITSU PRIMERGY TX2550 M5
- Corresponding P/Ns: A3C40203773 D3216-A23 D3216-A23 GS 1
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | RAID controller |
| Controller interface type | SAS 12G/SATA 6G |
| Number of channels | 8 |
| Battery module | no |
| Controller cache memory (GB) | 1 |
| Data transfer rate in MByte/s | 1200 |
| Low Profile | Yes |
| Max. number of peripheral devices | 8 |
| PCI variant | PCI-E 3.0 x8 |
| Slot compatibility | at least PCI-E x8 |
| RAID | |
| RAID functionality | Yes |
| RAID level 0 | Yes |
| RAID Level 1 | Yes |
| RAID Level 5 | Yes |
| RAID level 6 | Yes |
| RAID level 10 | Yes |
| RAID level 50 | Yes |
| RAID level 60 | Yes |
| Connections | |
| HD Mini-SAS (SFF-8643) 4x int. 36-pin | 2 |
Included in delivery: Item as described incl. Half Height Bracket w/o Flash Backup Unit (FBU) w/o Flash Backup Unit (FBU) Cable w/o TFM Module
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
