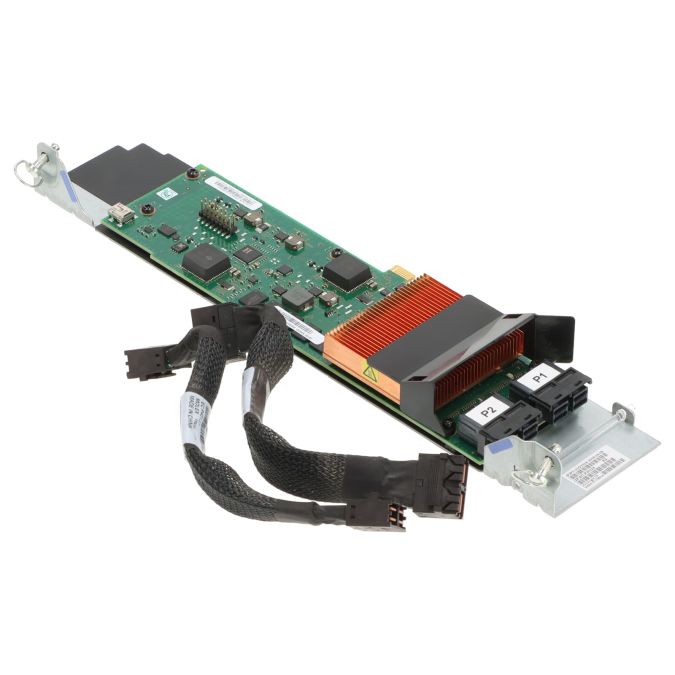

IBM RAID Controller Base Function SAS 6G PCIe3 x8 POWER9 - 02DE941 01LK399 57D7
| MPN | 01LK399 |
|---|---|
| Applicability | Server |
| Manufacturer | IBM |
| SKU | 50023054 |
| Product Type | CPU |
IBM RAID Controller Base Function SAS 6G PCIe3 x8 POWER9 - 02DE941 01LK399 57D7 is an enterprise hardware item from IBM, suitable for repair, upgrade and spare-part replacement projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: IBM
- SKU: 50023054
- Category: Parts / Controller / Raid Controller
- Stock status: InStock
- Product family: IBM Power System H924 (9223-42H)| IBM Power System H924S (9223-42S)| IBM Power System S914 (9009-41A)| IBM Power System S914 (9009-41G)| IBM Power System S924 (9009-42A)| IBM Power System S924 (9009-42G)| IBM POWER9 Systems
- Corresponding P/Ns: 01LK399 01ML061 02DE941 02DE942 CCIN 57D7 FC EJ1E
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | RAID controller (integrated) |
| Controller interface type | SAS 6G |
| Form factor | Plug-in card (internal) |
| Number of channels | 16 |
| Data transfer rate (SAS) | 6 Gbps |
| PCI variant | PCI-E 3.0 x8 |
| Slot compatibility | at least PCI-E x16 |
| RAID | |
| RAID functionality | Yes |
| RAID level 0 | Yes |
| RAID Level 1 | Yes |
| RAID Level 5 | Yes |
| RAID level 10 | Yes |
| Connections | |
| HD Mini-SAS (SFF-8643) 4x int. 36-pin | 4 |
Included in delivery: Item as described incl. SAS cable (backplane <-> PCI-E controller) w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
