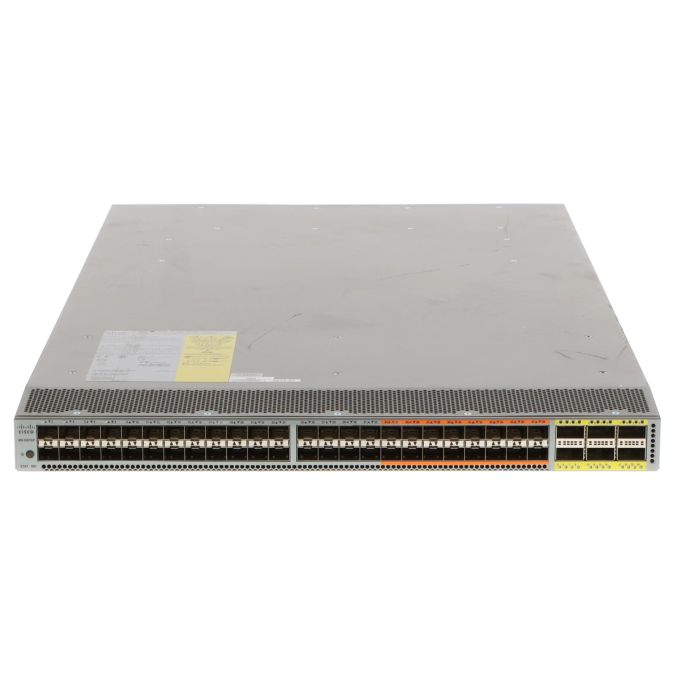

Cisco Nexus 5672UP Switch 32x 10GbE 16x 10GbE/8Gb FC FtB 3 Licences N5K-C5672UP
| MPN | 341-0521-01 |
|---|---|
| Applicability | Network |
| Manufacturer | Cisco |
| SKU | 10010435 |
| Product Type | Network Switch |
CiscoCisco Nexus 5672UP Switch 32x 10GbE 16x 10GbE/8Gb FC FtB 3 Licences N5K-C5672UP is an enterprise hardware item from CiscoCisco, suitable for network infrastructure and connectivity projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Cisco
- SKU: 10010435
- Category: Network / Switch / Ethernet Switch
- Stock status: InStock
- Product family: Cisco Nexus 2000 Fabric Extender| Cisco Nexus 2224TP| Cisco Nexus 2232PP| Cisco Nexus 2232TM| Cisco Nexus 2232TM-E| Cisco Nexus 2248PQ| Cisco Nexus 2248TP| Cisco Nexus 2248TP-E| Cisco Nexus 2332TQ| Cisco Nexus 2348TQ| Cisco Nexus 2348UPQ| Cisco Nexus B22DELL| Cisco Nexus B22F| Cisco Nexus B22HP| Cisco Nexus B22IBM
- Corresponding P/Ns: 341-0521-01 68-5125-02 800-41402-01 N5K-C5672UP N5K-C5672UP= N6K-C6001-FAN-F Nexus 5600 Nexus 5672UP NXA-PAC-1100W
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | Ethernet Switch / Fibre Channel Switch |
| Type of construction | Rack-mountable, 1U |
| Data Link Protocol | Gigabit Ethernet, 10GbE, 40GbE, Fibre Channel, FCoE |
| Data transfer rate (Ethernet) | 40 Gbps, 10 Gbps, 1 Gbps |
| Data transfer rate (FC) | 8 Gbps, 4 Gbps, 2 Gbps |
| Flash memory (MB) | 8192 |
| Number of fans | 3 |
| Power supply units | 2 |
| Processor | Single core @ 1800 MHz |
| RAM (MB) | 8192 |
| max. power | 1.44 Tbps |
| Airflow | Front-to-Back (Fan Side Intake) |
| Performance features | |
| ACL | 4000 ingress / 1000 egress |
| ARP | Yes |
| CLI | Yes |
| DHCP | Yes |
| EIGRP | EIGRPv6 |
| IGMP | Yes |
| IPv4 | Yes |
| IPv6 | Yes |
| IS-IS | Yes |
| MAC Address Table Size | 256.000 |
| MSTP | Yes |
| Managebar | Yes |
| OSPF | Yes |
| OSPFv2 | Yes |
| OSPFv3 | Yes |
| PVRST+ | Yes |
| QoS | Yes |
| RADIUS | Yes |
| RBAC | Yes |
| RIP v2 | Yes |
| RMON 1 | Yes |
| RMON 2 | Yes |
| RMON 3 | Yes |
| RMON 9 | Yes |
| RSTP | Yes |
| SNMPv1 | Yes |
| SNMPv2 | Yes |
| SNMPv3 | Yes |
| SSH v2 | Yes |
| STP | Yes |
| TACACS+ | Yes |
| VLAN | 4096 VLANs |
| VRRP | Yes |
| Connections | |
| Network - Ethernet - QSFP+ | 6 |
| Network - Ethernet - SFP+ | 32 |
| Network - Ethernet/FC - SFP+ | 16 |
| USB | 1 |
| Management - Ethernet - RJ-45 | 3 |
| Management - RS-232 - RJ-45 | 1 |
| Installed licences | |
| LAN_BASE_SERVICES_Package | Yes |
| LAN_ENTERPRISE_SERVICES_Package | Yes |
| VMFEX_FEATURE_Package | Yes |
| Note | |
| Special feature | The 16 unified ports provide 8-, 4-, and 2-Gbps Fibre Channel, as well as 10 Gigabit Ethernet and FCoE connectivity options. The Cisco Nexus 5672UP also offers 6 ports of 40 Gbps using QSFP transceivers for Ethernet and FCoE support. |
| Optical defect | May show scratches and signs of use. |
Included in delivery: Item as described incl. Fan incl. Power cable incl. Power supplies w/o Rack mount kit w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
