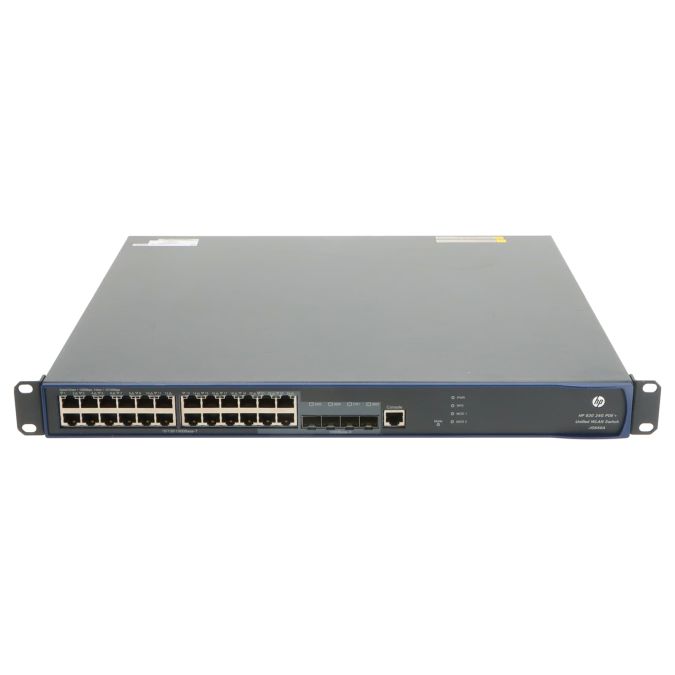

HP 830 24-Port PoE+ Unified Wired-WLAN Switch 24x 1GbE PoE+ 370W 4x 1GbE SFP - JG640A
| MPN | JG640-61001 |
|---|---|
| Applicability | Network |
| Manufacturer | Hewlett Packard |
| SKU | 10010342 |
| Product Type | Transceiver |
HP 830 24-Port PoE+ Unified Wired-WLAN Switch 24x 1GbE PoE+ 370W 4x 1GbE SFP - JG640A is an enterprise hardware item from Hewlett Packard, suitable for network infrastructure and connectivity projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Hewlett Packard
- SKU: 10010342
- Category: Network / Switch / Ethernet Switch
- Stock status: InStock
- Product family: HPE RPS1600 Redundant Power System JG136A
- Corresponding P/Ns: 830 24-Port PoE+ Unified Wired-WLAN HP 830 24G PoE+ JG640-61001 JG640A
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | Ethernet / WLAN switch |
| Type of construction | Rack-mountable, 1U |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data transfer rate (Ethernet) | 1 Gbps |
| Flash memory | 1 GB |
| Maximum Power Rating | 90 watts |
| Number of fans | 2 |
| Power supply units | 1 |
| PoE Power | 370 watts |
| RAM | 512 MB |
| max. power | 88 Gbps |
| Airflow | Left to Right |
| Performance features | |
| CLI | Yes |
| FTP | Yes |
| IGMP | Yes |
| IGMPv2 | Yes |
| IPsec | Yes |
| IPv4 | Yes |
| IPv6 | Yes |
| Layer | 2, 3 |
| MAC Address Table Size | 8000 |
| MSTP | Yes |
| Managebar | Yes |
| PoE | Yes |
| Port Mirroring | Yes |
| QoS | Yes |
| RIP v1 | Yes |
| RIP v2 | Yes |
| RSTP | Yes |
| SNMPv1 | Yes |
| SNMPv2c | Yes |
| SNMPv3 | Yes |
| SSH v2 | Yes |
| SSL | Yes |
| STP | Yes |
| Telnet | Yes |
| VLAN | Yes |
| Connections | |
| Network - Ethernet - SFP | 4 |
| Network - PoE+ - RJ-45 | 24 |
| Power supply - IEC 60320 C14 | 1 |
| Management - RS-232 - RJ-45 | 1 |
| Network functions | |
| Max. supported ACLs | 2000 |
| Max. supported APs | 60 (default supported: 24) |
| Max. supported SSIDs | 64 |
| Max. supported user | 1000 |
| Wireless throughput | 2 Gbps |
| Modules | |
| Module slots (free) | 2 |
| Note | |
| Optical defect | May show scratches and signs of use. |
Included in delivery: Item as described incl. Mounting bracket w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
