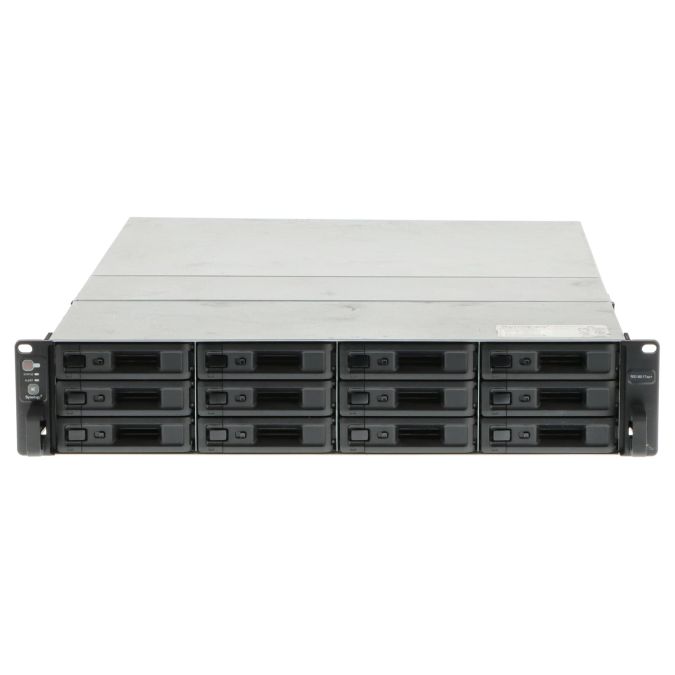

Synology RackStation NAS Storage 16GB 2x PSU 12x LFF 4x 1GbE 2x USB 3 RS18017xs
| Applicability | Storage |
|---|---|
| Manufacturer | Synology |
| SKU | 10010407 |
| Product Type | NAS |
Synology RackStation NAS Storage 16GB 2x PSU 12x LFF 4x 1GbE 2x USB 3 RS18017xs is an enterprise hardware item from Synology, suitable for enterprise IT infrastructure projects. This extended description gives a clean overview of the product, key order details and technical specifications for easier compatibility checking.
- Brand: Synology
- SKU: 10010407
- Stock status: InStock
- Corresponding P/Ns: RS18017xs+
Use the product name, SKU and listed specifications to compare the item with your existing server, storage, workstation or network configuration before ordering.
Technical specifications
| Specification | Details |
|---|---|
| Device type | NAS Server |
| Form factor | 19 inch |
| Storage architecture | Network Attached Storage (NAS) |
| Hard disc type | SATA, SAS, SSD |
| Number of power supply units | 2 |
| Number of installed hard drives | 0 |
| max. hard discs | 12 |
| RAID level | 0, 1, 10, 5, 6, JBOD |
| Processor | 6 Core Intel Xeon D-1531 @ 2.20GHz |
| Controller cache memory (GB) | 16 |
| Data transfer rate (Ethernet) | 10 Gbps, 1 Gbps |
| Data transfer rate (SATA) | 6 Gbps |
| Controller | |
| I/O module slot (free) | 2 |
| Connections | |
| Extension - SAS - SFF-8644 | 1 |
| Ethernet 10Gbps - RJ-45 | 2 |
| Network - Ethernet - RJ-45 | 4 |
| Power supply - IEC 60320 C14 | 2 |
| USB 3.0 | 2 |
| Management - RS-232 - DB9 | 1 |
| Management - RS-232 - RJ-45 | 1 |
Included in delivery: Item as described incl. Power cable w/o Hard disks w/o Additional accessories
Compatibility note: always verify the part number, generation, socket, form factor, controller type, memory type and firmware requirements with your system before purchase.
