| Main Specifications |

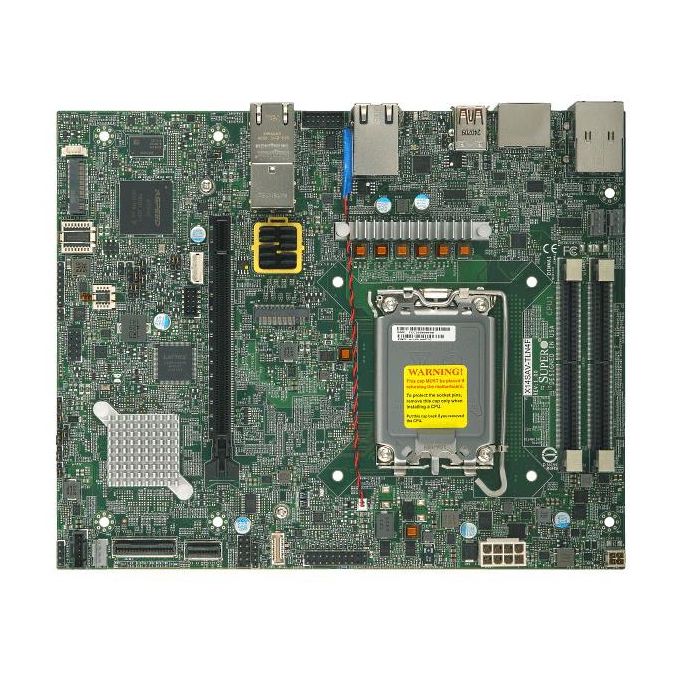

| Device Type | Motherboard |
| Form Factor | Flex ATX |
| Dimensions (WxDxH) | 9' x 7.25' (22.86cm x 18.42cm) |
| Processor |
| Compatible Processors | Intel Core Ultra 9/7/5 (Series 2) processors |
| Compatible Socket | Single Socket V1 (LGA-1851) supported, CPU TDP supports Up to 125W TDP |
| Cache/Cores | Up to 24 core |
| System Memory |
| Memory Capacity | Slot Count: 2 DIMM Slots, Max Memory (1DPC): Up to 96GB 6400MT/s ECC/non-ECC DDR5 SO-DIMM |
| CSODIMM (clocked SODIMM) support up to 6400MT/s (with Core Ultra 9/7) |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Network Controllers | Dual LAN with Intel I226LM Ethernet Controller, Dual LAN with Intel X550 10GBase-T Ethernet Controller |
| Others | 2 MCIO port(s) |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) (ASPEED AST2600 BMC) |
| USB(s) | 2 USB 2 port(s) (Header), 4 USB 3.2 Gen2 Type-A port(s) (Rear), 2 USB 3.2 Gen2 port(s) (Header) |
| Video Output | 1 HDMI 2.1 port, 1 Display Port, 1 Header port |
| Serial Port / Headers | 1 COM port(s) (header) |
| TPM | 1 TPM Header & Chip both |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCIe 5.0 x16 slot, 1 PCIe 4.0 x8 via MCIO Connector slot |
| M.2 | 1 M.2 PCIe 5.0 x4 slot (M-key 2280) |
| System BIOS |
| BIOS Type | AMI 32MB UEFI |
| BIOS Features | ACPI 6.5, SMBIOS 3.7 or later, UEFI 2.9 |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | +1.8V,+12V,+3.3V,+5V,3 -fan status,3 fans with tachometer monitoring,BMC/IPMI Heartbeat LED,Chipset voltage,CPU temperature,Memory temperature,UID,VBAT |
| LED | Power LED |
| Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment |
| FAN | 3x 4-pin fan headers (up to 3 fans) |
| Other Features | 12V DC or ATX Power Source, ACPI power management, ATX power connector, Chassis intrusion detection, M.2 NGFF connector, RoHS |
| Parts List |
| I/O Cables | 1x CBL-MCIO-1250QT4Q-85, 1x CBL-PWEX-1066 |
| I/O Shield | 1x MCP-260-00197-0N |
