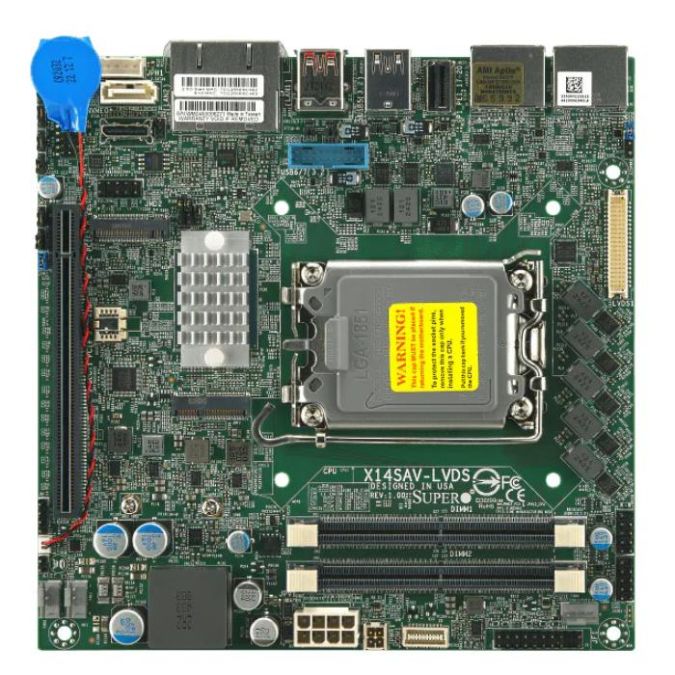

Supermicro X14SAV-LVDS Motherboard Mini-ITX Single Socket V1 (LGA-1851) Intel Core Ultra 9/7/5 Series 2 Processors
| Applicability | Enterprise server / data center platform |
|---|---|
| Manufacturer | Supermicro |
| SKU | X14SAV-LVDS |
| Product Type | Embedded Server Motherboard |
Key Features
Intel Core Ultra 9/7/5 Series 2 Processor, Single Socket LGA-1851 supported, CPU TDP supports Up to 65W
Up to 96GB Unbuffered ECC/non-ECC CSODIMM/SODIMM, clocked DIMM support up to 6400MT/s (with Core Ultra 9/7), in 2 slots
1 PCIe 5.0 x16 slot (16/NA or 8/8 or 8/4/4)
1 PCIe 4.0 x4 MCIO port
1 M.2 M-Key 2280 (PCIe 5.0 x4)
1 M.2 E-Key 2230 (PCIe 4.0 x1/USB 2.0)
Dual 2.5 Gigabit LAN with Intel® Ethernet i226LM LAN controller [AMT/vPro]
Intel W880 Controller for 4 SATA3 (6 Gbps) ports, RAID 0,1,5,10
4 Independent Displays (1 24 bit LVDS, 2 DP 1.4 ports, 2 HDMI 2.1 ports)
Supports 12V - 24V DC power input
Both onboard TPM 2.0 chip and pin header
