| Main Specifications |

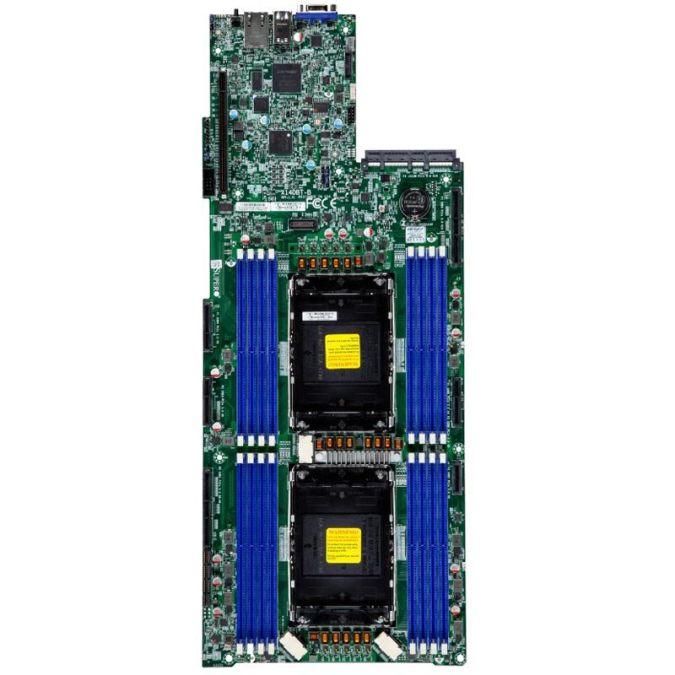

| Device Type | Motherboard |
| Form Factor | Proprietary |
| Dimensions (WxDxH) | 7.617' x 18.86' (19.347cm x 47.8cm) |
| CPU TDP | Supports up to 350W TDP CPUs |
| Processor |
| Compatible Processors | Intel Xeon 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| BIOS 1.2 or above is required to support Intel Xeon 6700/6500-series processors with P-cores |
| Compatible Socket | Dual Socket E2 (LGA-4710) |
| Cache/Core | Up to 144C |
| System Memory |
| Memory Capacity | Slot Count: 16 DIMM slots |
| Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM |
| Max Memory (1DPC): Up to 1TB 8000MT/s ECC DDR5 MRDIMM (P-core only) |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| IPMI | ASPEED AST2600 BMC |
| Network Controllers | AIOM for LAN |
| Input / Output |
| LAN | 1 RJ45 1 GBASE-T Dedicated IPMI LAN port(s) (ASPEED AST2600 BMC) |
| USB(s) | 2 USB 3 Type-A port(s) (Rear) |
| Video Output | 1 VGA port |
| TPM | 1 TPM 2.0 Header |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCIe 5.0 x16 Right Riser slot |
| 1 PCIe 5.0 x16 Left Riser slot |
| 1 PCIe 5.0 x16 AIOM slot , OCP 3.0 compliant |
| 1 PCIe 5.0 x16 (in x16) slot , For NVMe SCC storage card |
| 1 PCIe 5.0 x8 slot , For NVMe SCC storage card |
| 1 PCIe 5.0 x8 slot , For SAS SCC storage card |
| 1 PCIe 5.0 x8 slot , For M.2 adapter to support RAID two NVMe M.2 devices |
| 3 PCIe 5.0 x8 slots , For cabling to SCC storage card |
| 1 PCIe 5.0 x4 (in x16) slot |
| 2 PCIe 5.0 x8 (in x16) slots , For M.2 adapter to support two NVMe M.2 devices |
| M.2 | 4 M.2 PCIe 5.0 x4 slots (M-key 22110) |
| System BIOS |
| BIOS Type | AMI 64MB UEFI |
| BIOS Features | ACPI 6.5, SMBIOS 3.7 or later, UEFI 2.9 |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New, Plug-ins for 3rd Party Software |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | +3.3V,+5V,+5V standby,3.3V standby,4 fans with tachometer monitoring,ACPI power management,BMC/IPMI Heartbeat LED,Control of power-on for recovery from AC power loss,Low noise fan speed control,Monitors CPU Core Voltages,Platform Environment Control Interface (PECI)/(TSI) |
| LED | BMC Heartbeat LED, Power LED, UID/remote UID LED |
| Temperature | CPU thermal trip support, PECI |
| FAN | 1x 4-pin fan header (up to 1 fan), CPU thermal trip support |
