More Information
| Applicability |
Enterprise server / data center platform |
| Manufacturer |
Supermicro |
| SKU |

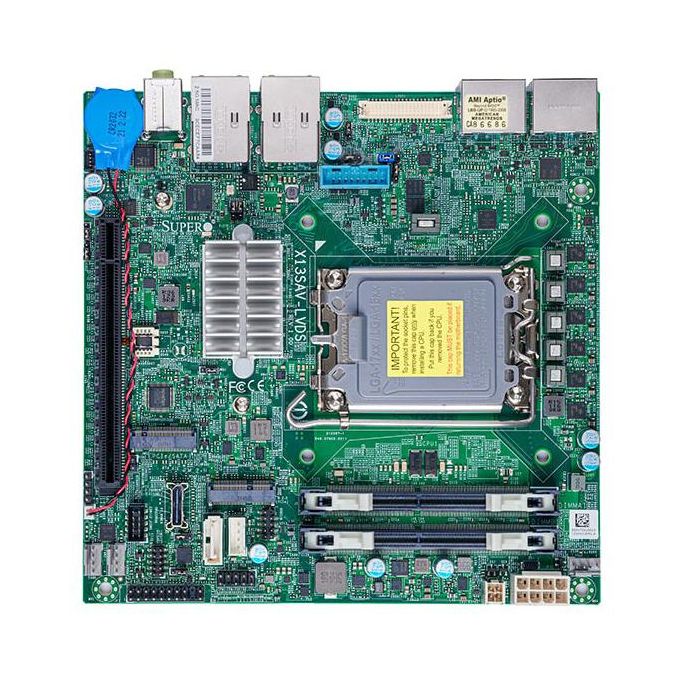

X13SAV-LVDS |
| Product Type |
Embedded Server Motherboard |
1. 14th/13th/12th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron Processor, Single Socket LGA-1700 supported, CPU TDP supports Up to 65W TDP (**bios v3.1 or above)
2. Up to 64GB Unbuffered non-ECC SODIMM, DDR4-3200MHz, in 2 SODIMM slots
3. 1 PCIe 5.0 x16 slot (16/NA or 8/8) 1 M.2 M-Key 2280 (PCIe 4.0 x4) 1 M.2 E-Key 2230 (PCIe 3.0 x1/USB)
4. Single 1 Gigabit LAN with Intel® Ethernet i210-AT LAN controller Single 2.5 Gigabit LAN with Intel® Ethernet i225LM LAN controller [AMT/vPro]
5. Intel® Q670E Controller for 5 SATA3 (1 header, 4 via Oculink) ports, RAID 0,1,5,10
6. 4 Independent Displays (2 DP ports, 1 HDMI 2.0b port, 1 HDMI 1.4a port, LVDS)
7. Supports 12V DC power input
8. Onboard TPM2.0
|
