| System Memory |
| Memory Capacity | 2 DIMM slots |
| Up to 64GB Unbuffered non-ECC SODIMM, DDR4-3200MHz |
| Memory Type | 3200 MT/s non-ECC DDR4 Unbuffered ered 260pin SODIMM |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | 1.2V |
| On-Board Devices |
| Chipset | System on Chip |
| Audio | ALC 888S HD Audio |
| Graphics | 1 Intel® UHD Graphics for 11th Gen Intel® Processors port(s) |
| Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz), HDMI 2.0b (max. resolution up to 4096x2160@60Hz), HDMI 1.4b (max. resolution up to 4096x2160@30Hz), DP (Alt mode, max. resolution up to 4096x2304@60Hz) |
| Network Controllers | Dual LAN with Intel® Ethernet Controller I225-IT, 2.5G, TSN, industrial grade |
| Input / Output |
| LAN | 2 RJ45 2.5 Gigabit Ethernet LAN port |
| Video Output | 2 HDMI port(s), 1 48-bit LVDS port(s), 1 DP (Alt mode) port(s) |
| SATA | 1 SATA3 (6Gbps) port(s) |
| USB | 4 USB 2.0 port(s) (4 via header) |
| 4 USB 3.2 Gen2 port(s) (3 rear type A, 1 rear type C) |
| Serial Port | 4 COM Port(s) (4 header), (2 x RS232, 2 RS232/422/485, RS-485 supports Auto flow control) |
| TPM | 1 TPM Chip |
| Others | 1 8-bit GPIO header |
| 1 System Fan |
| 1 HD Audio header Mic-in/Headphone-out (Audio only support at 0~60C) |
| 1 SMBus header |
| 1 speaker out header with 3W amplifier |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | SMBIOS 3.0 or later |
| UEFI 2.7 |
| PCI FW 3.0 |
| ACPI 6.2 |
| Management |
| Software | SuperDoctor® 5, Watchdog |
| System Management Software | SuperDoctor 5 |
| Power Configurations | ACPI Power Management, CPU thermal trip support for processor protection, +12-24V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper |
| PC Health Monitoring |
| Voltage | VBAT, System temperature, System level control, Monitors CPU voltages, 3.3V standby, 1.2V (VDIMM), +5V, +3.3V, +12V |
| LED | Standby alert LED |
| Temperature | CPU thermal trip support |
| Other Features | WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 8-pin 12-24V DC Power Connector |
| FAN | Low noise fan speed control |
| Fan speed control |
| PWM fan speed control |
| System level control |
| Thermal control tachometer fan connectors |
| 1x 4-pin fan header (up to 1 fan) |
| Product SKUs |

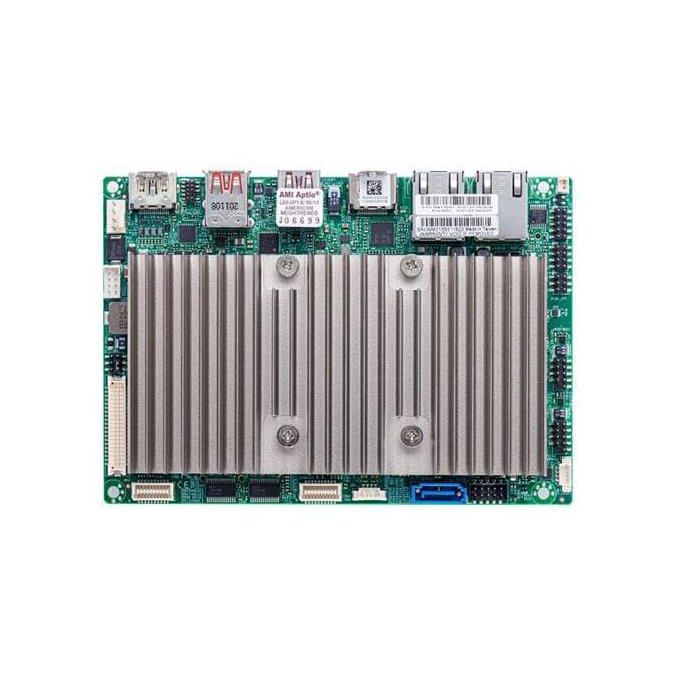

| Product SKUs | MBD-X12STN-L |
| Physical Stats |
| Form Factor | 3.5' SBC |
| Dimension | 5.7' x 4' (14.6cm x 10.16cm) |
| Processor |
| CPU | 11th Generation Intel® Core™ i3-1115GRE Processor |
| Single Socket FCBGA-1449 supported, CPU TDP supports Up to 28W TDP |
| Core | Up to 2 cores, 4 threads / 6MB Cache |
| Expansion Slots |
| PCIe | N/A |
| M.2 | Key: B-Key, M-Key, E-Key |
| M.2 2242/3042/2280 B-Key (USB3.0/2.0, SATA Gen3/PCIe Gen3 x1) with nano SIM holder M.2 2230 E-Key (CNVi/PCIe 3.0 x1/USB2) M.2 2242/2280 M-Key (PCIe 4.0 x4), NVMe support |
| Operating Environment |
| Operating Temperature Range | -40°C - 60°C (0°F - 140°F) |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) |
