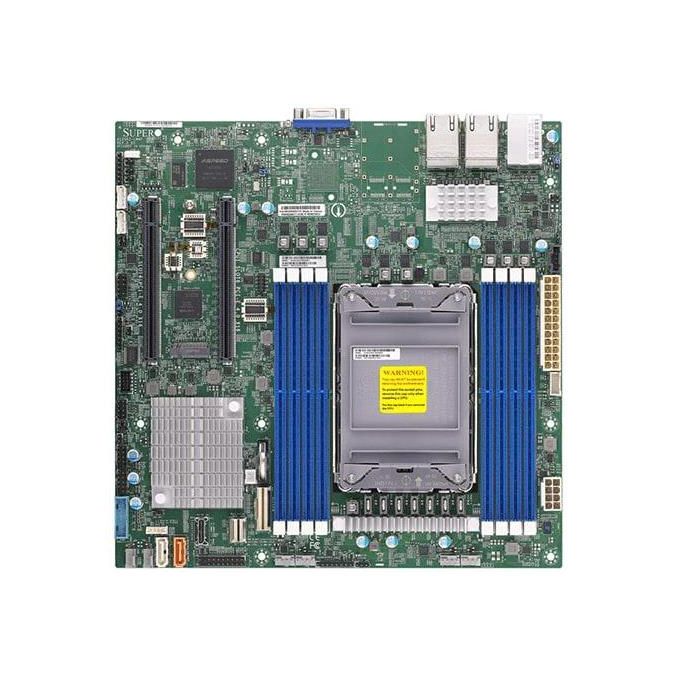

Supermicro X12SPZ-LN4F Motherboard Micro-ATX Single Socket LGA-4189 (Socket P+) Intel Xeon Scalable 3rd Generation Processors
| Applicability | AI / ML — server platform / infrastructure |
|---|---|
| Manufacturer | Supermicro |
| SKU | X12SPZ-LN4F |
| Product Type | Embedded Server Motherboard |
1. Supports 12V DC power input
2. 3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
3. Intel® C621A
4. Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots
5. 2 PCIe 4.0 x16
6. 1 PCIe 4.0 NVMe x8 SlimSAS Internal Port 1 PCIe 4.0 NVMe x4 SlimSAS Internal Port
7. 1 OCuLink Connector (4 SATA/PCIe 3.0 x4) 1 M.2 M-Key 2242/2280 (SATA/PCIe 3.0 x4)
8. Quad 1G RJ45 with Intel® I350-AM4
9. 4 USB 3.2 Gen 1 (2 Rear, 2 via Header), 4 USB 2.0 (Headers)
