More Information
| Applicability |
AI / ML — server platform / infrastructure |
| Manufacturer |
Supermicro |
| SKU |

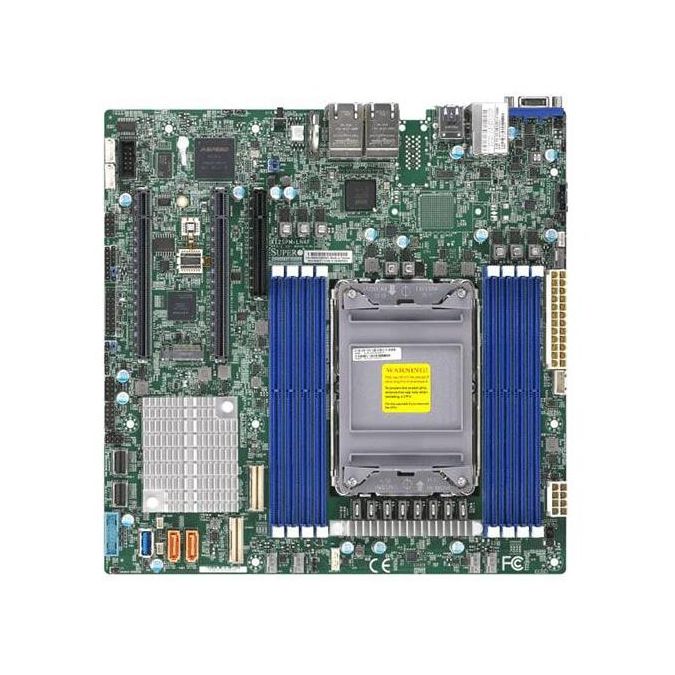

X12SPM-LN4F |
| Product Type |
Embedded Server Motherboard |
1. Supports 12V DC power input
2. 5 USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
3. 3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
4. Intel® C621A
5. Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots
6. 4x NVMe port PCIe 4.0 x4 via SlimSAS connector
7. 1 PCIe 4.0 x8, 2 PCIe 4.0 x16, 2 PCIe 4.0 x8 SlimSAS connectors M.2 Interface: 1 SATA/PCIe 3.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-Key
8. Intel® C621A controller for 10 SATA3 (6 Gbps) ports, RAID 0,1,5,10
9. Quad LAN with 1GbE with Intel® I350-AM4
|
