More Information
| Applicability |
Enterprise server / data center platform |
| Manufacturer |
Supermicro |
| SKU |

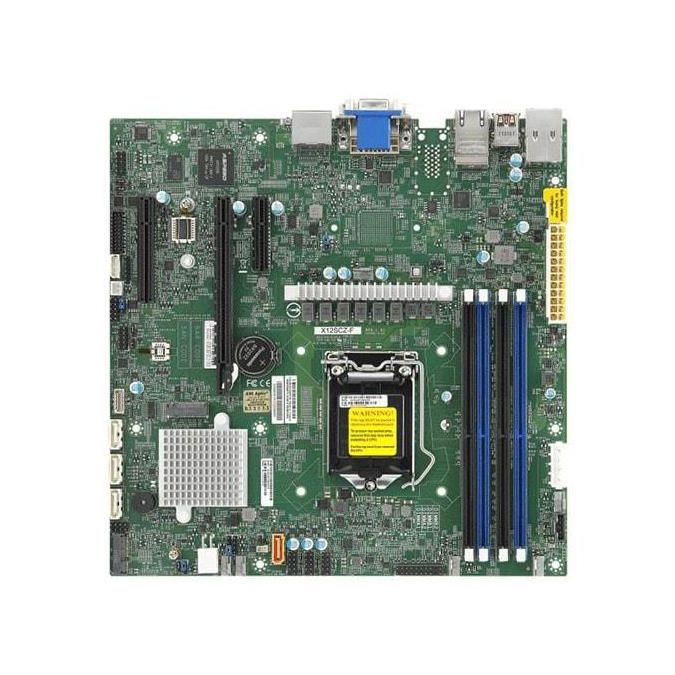

X12SCZ-F |
| Product Type |
Embedded Server Motherboard |
1. 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 Processor, Intel® Xeon® W-1200 Processors Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
2. Single LAN with Intel® PHY I219LM LAN controller Single LAN with Intel® Ethernet Controller I210-AT
3. Intel® W480E
4. Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
5. 1 PCIe 3.0 x16, 1 PCIe 3.0 x4 (in x8 slot), 1 PCIe 3.0 x4 1 M.2 M-Key SATA/PCIe 3.0 x4, 2280/22110 1 M.2 E-Key CNVi/PCIe 3.0 x1, 2230
6. Intel® W480E controller for 4 SATA3 (6 Gbps) ports, RAID 0,1,5,10
7. 1 VGA D-Sub Connector port, 2 DP++(Dual-Mode DisplayPort) ports, 1 DVI - D port
|
