More Information
| Applicability |
Enterprise server / data center platform |
| Manufacturer |
Supermicro |
| SKU |

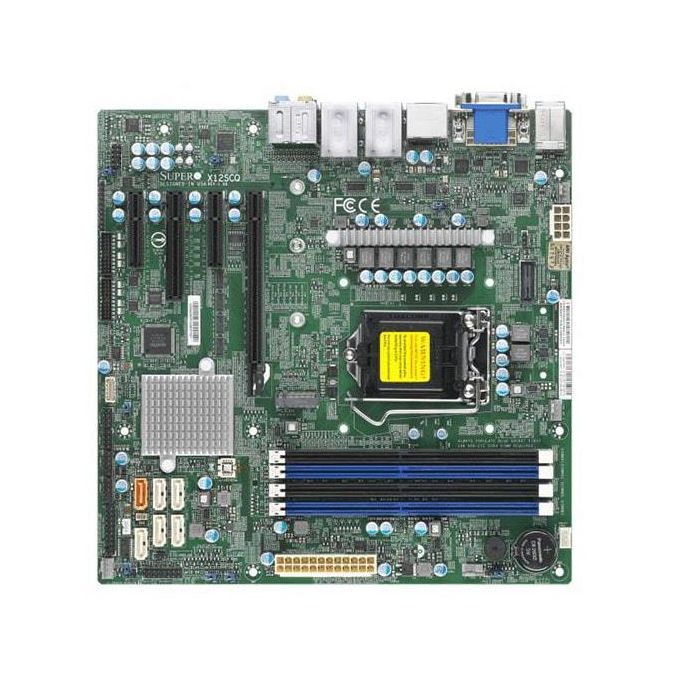

X12SCQ |
| Product Type |
Embedded Server Motherboard |
1. 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
2. Intel® Q470E
3. Intel® Q470 controller for 6 RAID 0,1,5,10
4. Single LAN with Intel® PHY I219LM LAN controller Single LAN with Intel® Ethernet Controller I210-AT
5. Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
6. 1 PCIe 3.0 x16 (in x16 slot), 1 PCIe 3.0 x8, 2 PCIe 3.0 x4 M.2 Interface: 1 PCIe 3.0 x4, RAID 0 & 1 M.2 Form Factor: 2242/2280 M.2 Key: M-Key
7. 1 VGA port, 1 HDMI port, 1 DP (DisplayPort) port, 1 DVI - D port
|
