| Main Specifications |

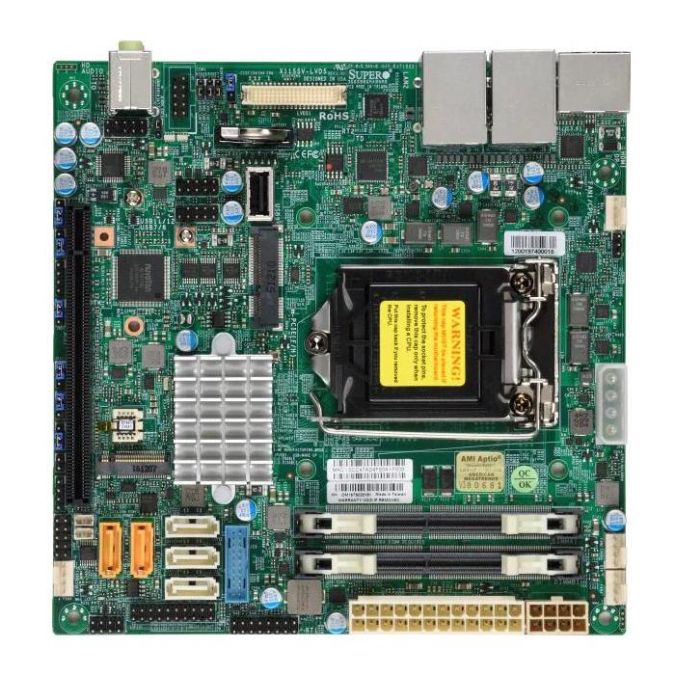

| Device Type | Motherboard |
| Form Factor | Mini-ITX |
| Dimensions (WxDxH) | 6.7' x 6.7' (17.02cm x 17.02cm) |
| Processor |
| Compatible Processors | Intel 6th Generation Core i3 series, Intel Celeron, Intel Pentium, Intel 6th Generation Core i5 series, Intel 6th Generation Core i7 series, Intel 7th Generation Core i3 series, Intel 7th Generation Core i5 series, Intel 7th Generation Core i7 series |
| Compatible Socket | Single Socket LGA-1151 (Socket H4) supported |
| CPU TDP | CPU TDP supports Up to 91W TD |
| System Memory |
| Memory Capacity | 2 DIMM slots, Up to 32GB Unbuffered non-ECC SODIMM, DDR4-2400MT/s |
| Memory Type | 2400/2133/1866 MT/s non-ECC DDR4 SODIMM Unbuffered SDRAM 72-bit, 260-pin gold-plated |
| DIMM Sizes | 4GB, 8GB, 16GB |
| Memory Voltage | 1.2 V |
| On-Board Devices |
| Chipset | Intel Q170 Express |
| SATA RAID | Intel Q170 Express controller for 5 SATA3 (6 Gbps) ports, RAID 0,1,5,10 |
| Graphics | 1 Intel HD Graphics port(s) |
| Network Controllers | Single LAN with Intel PHY I219LM LAN controller, Single LAN with Intel Ethernet Controller I210-AT |
| Input / Output |
| USB(s) | 4 USB 3.2 Gen1 port(s) (4 rear), 1 USB 2.0 port(s) (1 Type A) |
| Video Output | 1 LVDS port |
| Serial Port / Headers | 1 COM |
| TPM | 1 TPM Header |
| Others | 1 SMBus header, 1 SGPIO Header, 1 GPIO |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCIe 3.0 x16 |
| Mini-PCIe with mSATA support, M.2 PCIe 3.0 x4 with SATA support, M Key |
| M.2 | Form Factor: 2280, 2242 |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | ACPI 5.0, DMI 2.3, PCI 3.0, Plug and Play (PnP), SMBIOS 3.0, UEFI 2.3.1, RTC (Real Time Clock) Wakeup, USB Keyboard support |
| Management |
| Software | SuperDoctor® 5, NMI, AMT, vPro, Watchdog |
| System Management Software | SuperDoctor 5 |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Environmental |
| Operating Environment | Operating Relative Humidity Range: 10% - 85% (non-condensing) |
| Non-Operating Relative Humidity Range: 10% - 95% (non-condensing) |
| Non-Operating Temperature Range: -20°C - 60°C (-4°F - 140°F) |
| Operating Temperature Range: 0°C - 60°C (32°F - 140°F) |
| Parts List |
| I/O Cables | 2x CBL-0044L |
| I/O Shield | 1x MCP-260-00070-1N |
