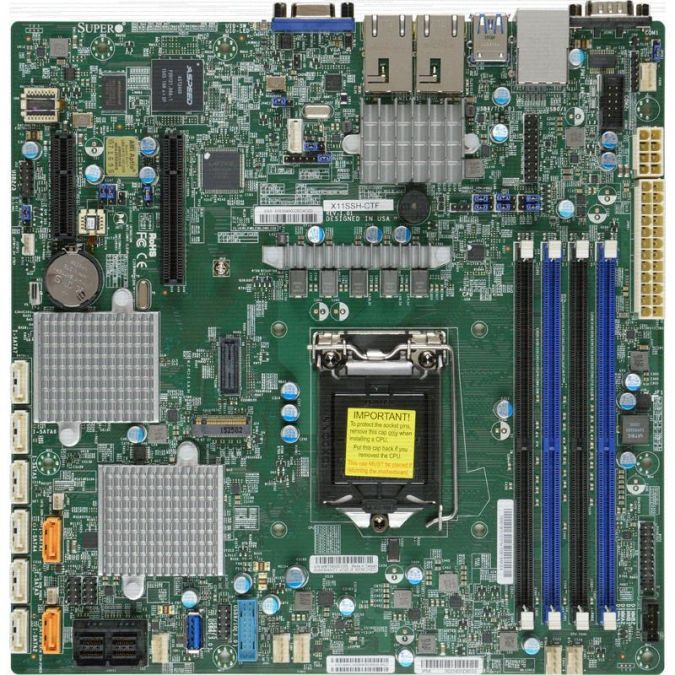

Supermicro X11SSH-CTF-B Motherboard MicroATX Intel Xeon E3-1200 v6/v5 Celeron/Pentium and Intel Core i3 series 7th/6th Generation Processors
| Applicability | Enterprise server / data center platform |
|---|---|
| Manufacturer | Supermicro |
| SKU | X11SSH-CTF-B |
| Product Type | Server Motherboard |
Key Features
Single socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v6/v5, Intel 7th/6th Gen. Core i3 series, Intel Celeron and Intel Pentium
Intel C236 chipset
Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz, 4 DIMM slots
Expansion slots: 1 PCIe 3.0 x8, 1 PCIe 3.0 x2 (in x4)
M.2 NGFF connector
M.2 Interface: SATA and PCIe 3.0 x4
Form Factor: 2260
Key: M-Key
8 SATA3 (6Gbps) via C236, RAID 0, 1, 5, 10
8 SAS3 (12Gbps) via Broadcom® 3008, RAID 0, 1, 10
Dual 10GBase-T LAN with Intel X550
I/O: 1 VGA, 2 COM, TPM header
5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s)
