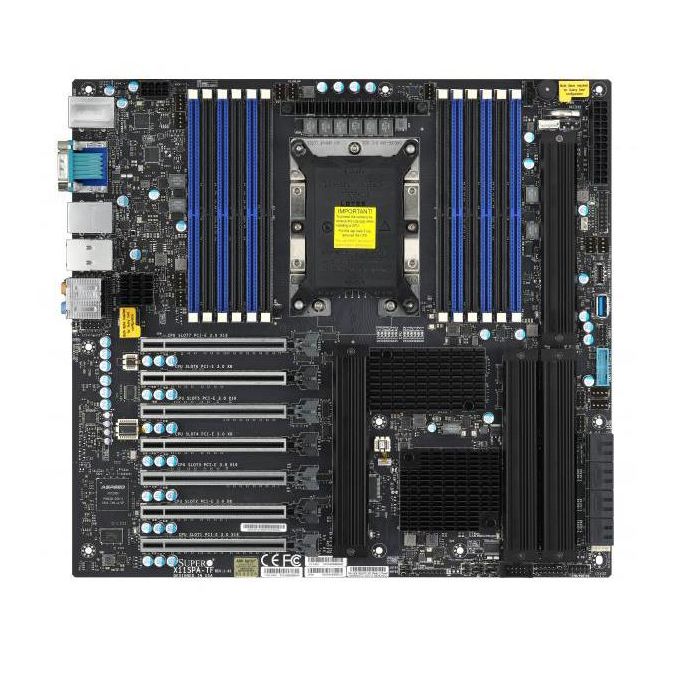

| System Memory |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB |
| Memory Voltage | 1.2V |
| Memory Capacity | 12 DIMM slots |
| Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz, Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz |
| Up to 3TB Intel® Optane™ Persistent Memory 200 Series, DDR4-2666MHz |
| Memory Type | ECC DDR4 LRDIMM (3DS), RDIMM (3DS) |
| On-Board Devices |
| Chipset | Intel® C621 |
| IPMI | ASPEED AST2500 |
| Network Controllers | Single LAN with Realtek RTL8211E PHY (dedicated IPMI) |
| Single LAN with Intel® Ethernet Controller I210-AT |
| Single LAN with Aquantia® AQC107 10G Ethernet Controller |
| Graphics | 1 ASPEED AST2500 BMC port(s) |
| VGA connector is dedicated for IPMI. |
| SATA | Intel® C621 controller for 8 SATA3 (6 Gbps) ports, RAID 0,1,5,10 |
| Audio | ALC 888S HD Audio |
| Input / Output |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| 1 RJ45 Gigabit Ethernet LAN ports |
| 1 RJ45 10GBase-T ports |
| USB | 2 USB 2.0 port(s) (2 via header) |
| 6 USB 3.1 Gen1 port(s) (2 via header, 4 rear type A) |
| 4 USB 3.1 Gen2 port(s) (1 rear type C, 1 type A, 1 rear type A, 1 type C) |
| Video Output | 1 VGA port(s) |
| Serial Port | 2 COM Port(s) (1 header, 1 rear) |
| DOM | 1 SATA DOM power connector (Disk on Module) port |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Type | 256MB SPI Flash with AMI BIOS |
| BIOS Features | SMBIOS 2.7 |
| ACPI 3.0 / 4.0 |
| RTC (Real Time Clock) Wakeup |
| PCI FW 3.0 |
| PC Health Monitoring |
| Voltage | VBAT, Memory, HT, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 10 -fan status |
| FAN | 10x 4-pin fan headers (up to 10 fans) |
| PWM fan speed control, Fan speed control, Dual Cooling Zone, Status monitoring for speed control, Overheat LED indication, 10x fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| PECI |
| LED | CPU / System Overheat LED |
| Suspend static indicator LED |
| Other Features | WOL, UID, RoHS, Dual Cooling Zones, CPU thermal trip support for processor protection, Chassis intrusion header, Intel Smart Response Technology |
| Product SKUs |
| Product SKUs | - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs. |
| Physical Stats |
| Form Factor | E-ATX |
| Dimension | 12' x 13' (30.48cm x 33.02cm) |
| Processor |
| CPU | 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors |
| Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP |
| Core | Up to 28 cores |
| Expansion Slots |
| PCIe | 4 PCIe 3.0 x16, |
| PCIex16 Slot#1 shares with M.2, Slot#2 shares with Slot#3(NA/16,8/8), Slot#4 shares with Slot#5(NA/16,8/8), Slot#6 shares with Slot#7(NA/16,8/8) |
| 3 PCIe 3.0 x8 (in x16 slot), |
| M.2 | Key: M-Key |
| Form Factor: 2242/2260/2280/22110 |
| M.2 Interface: 4 PCIe 3.0 x4, RAID 0 & 1 |
| M.2 support RAID 0,1(up to RAID 5, 10), VROC key is required for Raid. |
| Management |
| Software | SuperDoctor® 5, SUM , SPM , Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support |
| System Management Software | SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection, Main Switch Override Mechanism |
| Operating Environment |
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) |
