| System Memory |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| Memory Capacity | 4 DIMM slots |
| Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz |
| Memory Type | 2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin |
| Memory Voltage | 1.2V |
| On-Board Devices |
| Chipset | Intel® C246 |
| Graphics | 3 Independent Displays |
| 1 ASPEED AST2500 BMC port(s) |
| 1 Intel® HD Graphics port(s) |
| IPMI | ASPEED AST2500 |
| Network Controllers | Single LAN with Intel® Ethernet Controller I210-AT |
| Single LAN with Intel® PHY I219LM LAN controller |
| SATA | Intel® C246 controller for 5 SATA3 (6 Gbps) ports, RAID 0,1,5,10 |
| Audio | ALC 888S HD Audio |
| Input / Output |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| Video Output | 1 VGA D-Sub Connector port(s), 2 DP (DisplayPort) port(s), 1 DVI - I port(s) |
| USB | 6 USB 3.1 Gen2 port(s) (2 via header, 1 rear type C, 3 rear type A) |
| 7 USB 2.0 port(s) (6 via header, 1 Type A) |
| 2 USB 3.1 Gen1 port(s) (2 via header) |
| Serial Port | 4 COM Port(s) (4 header) |
| DOM | 1 SATA DOM (Disk on Module) power connector support |
| TPM | 1 TPM Header & Chip both |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | RTC (Real Time Clock) Wakeup |
| PCI FW 3.0 |
| ACPI 6.1 |
| SMBIOS 3.1 |
| UEFI 2.6 |
| Management |
| Power Configurations | ACPI Power Management, ATX Power connector, +12V DC Power Input |
| Software | SuperDoctor® 5, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support |
| System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support |
| PC Health Monitoring |
| FAN | Dual Cooling Zone |
| 6 fans with tachometer status monitoring |
| Fan speed control |
| 6x 4-pin fan headers (up to 6 fans) |
| LED | UID/Remote UID |
| Other Features | UID, RoHS, M.2 NGFF connector, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source |
| Voltage | VBAT, System temperature, Monitors CPU voltages, Chassis intrusion header, 6 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, Memory Voltages |
| Temperature | Thermal Control for 6 Fan Connectors |
| Product SKUs |

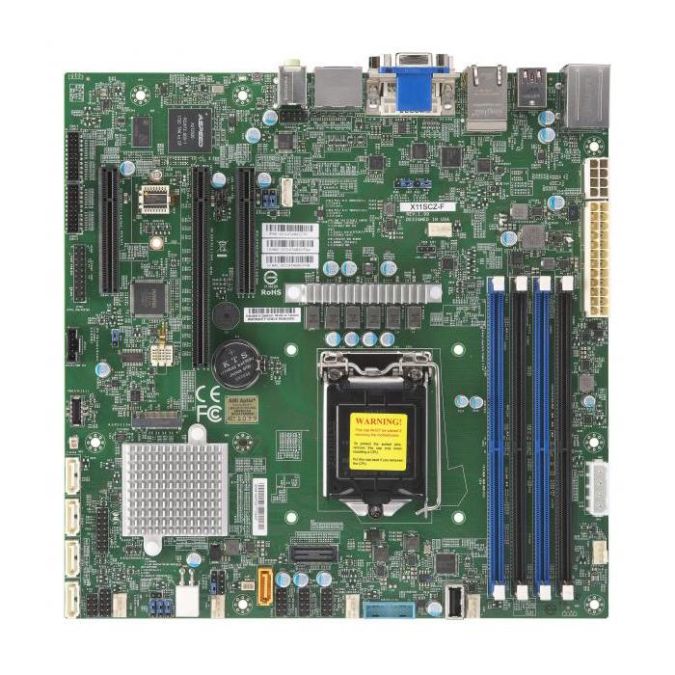

| Product SKUs | MBD-X11SCZ-F |
| Physical Stats |
| Form Factor | uATX |
| Dimension | 9.6' x 9.6' (24.38cm x 24.38cm) |
| Processor |
| CPU | A graphic integrated CPU is required to have onboard video from the DVI and DP ports |
| Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP |
| 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor |
| Expansion Slots |
| PCIe | 1 PCIe 3.0 x16, |
| 2 PCIe 3.0 x4 (in x8 slot) |
| M.2 | Key: M-Key |
| M.2 Interface: 1 SATA/PCIe 3.0 x4 |
| Form Factor: 2280/22110 |
| Operating Environment |
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
