More Information
| Applicability |
Enterprise server / data center platform |
| Manufacturer |
Supermicro |
| SKU |

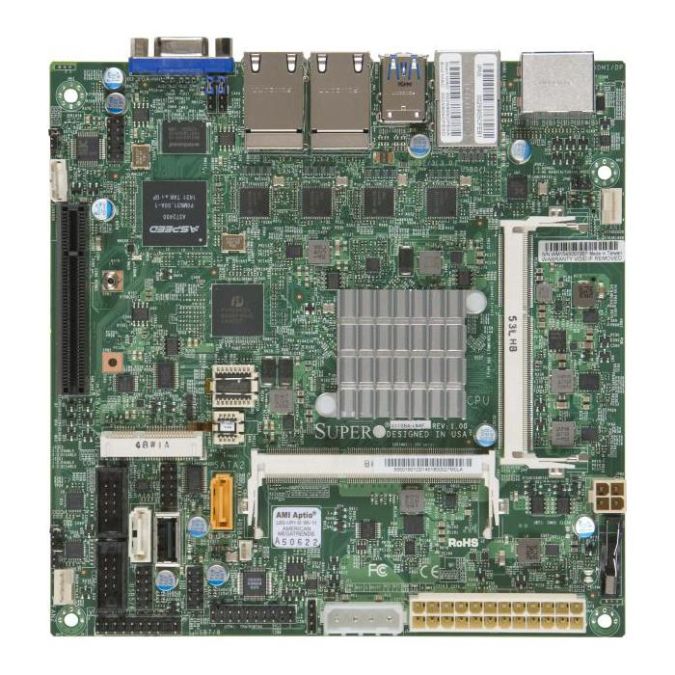

X11SBA-LN4F |
| Product Type |
Embedded Server Motherboard |
1. Intel® Pentium™ Processor N3710., Single Socket FCBGA1170 supported, CPU TDP support 6W
2. Up to 8GB 1600MHz DDR3 Non-ECC SO-DIMM in 2 sockets
3. 1 PCIe 2.0 x1 (in x8), 1 Mini-PCIe (mSATA support)
4. Quad GbE LAN with Intel® i210-AT
5. Supports 12V DC power input
6. System-on-Chip
7. 1 HDMI, 1 DP, Intel HD Graphics, VGA port for BMC
8. 2 USB 3.0 ports (2 rear), 7 USB 2.0 (2 rear, 4 via header(s), 1 Type A)
9. I/O: 1 SATA DOM, 2 COM, TPM 1.2 header, ALC 888S HD Audio
10. IPMI 2.0 with dedicated Port and KVM
|
